97 66 23 Installing wire harness for airbag - as of MY
2005

- Preliminary work
- Tools and materials
- Installing wire harness for airbag
- Subsequent work

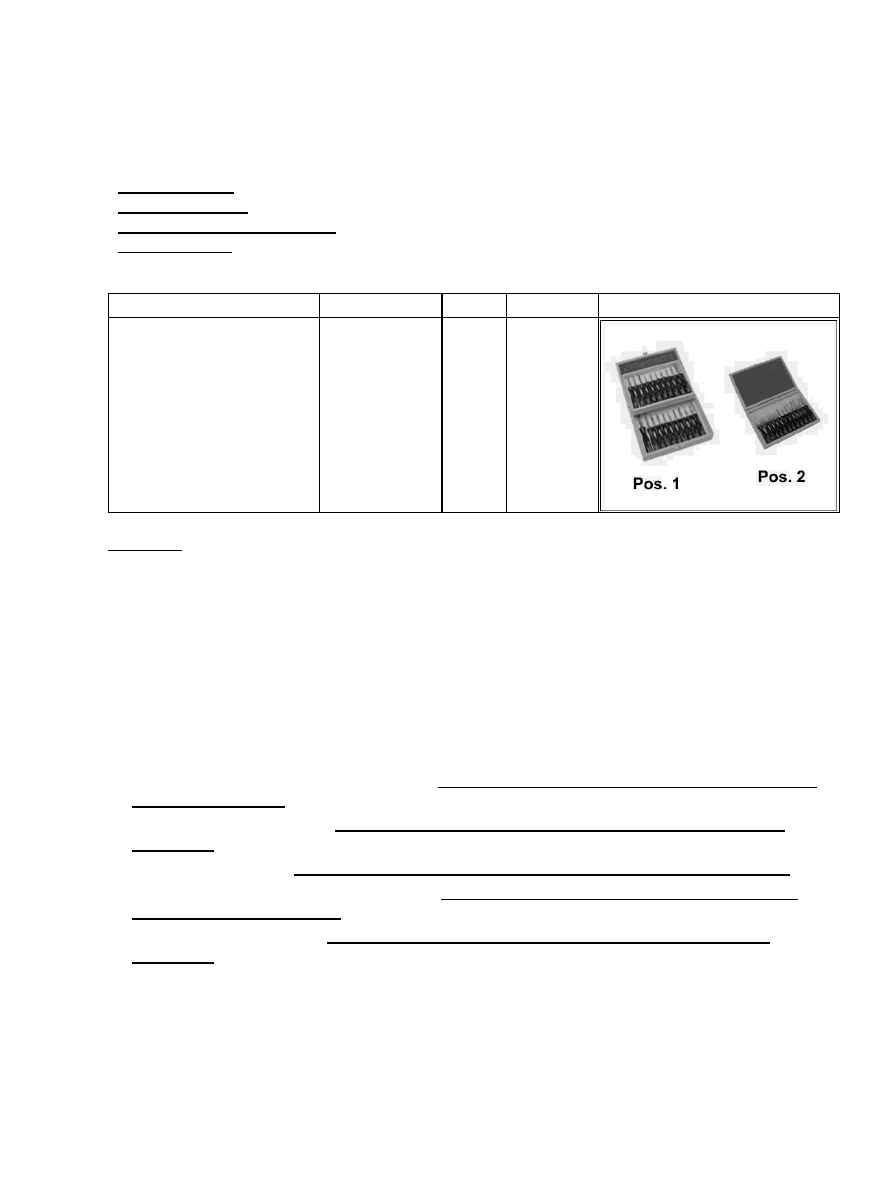

Tools

Designation

Type

Number Explanation

press-out and unlocking tools
for flat and round plug
connections of all sizes

commercially
available tool

NR.155

Preliminary work

Preliminary work for wire harness for passenger's airbag unit

1. Disconnect battery. → 271000 A7 Work instructions after disconnecting the battery - sectionn on

"Disconnecting and connecting"

2. Remove cover of console at the left and right. → 681419 Removing and installing centre console cover -

section on "Removing"

3. Remove centre console cover. → 681919 Removing and installing centre console cover - section on

"Removing"

4. Remove centre console. → 681719 Removing and installing centre console - section on "Removing"

5. If installed, remove control unit for tilt sensor. → 966319 Removing and installing control unit for tilt

sensor - section on "Removing"

6. Remove glove compartment. → 681519 Removing and installing glove compartment - section on

"Removing"

Preliminary work for wire harness for left seat-belt tensioner

1. Disconnect battery. → 271000 A7 Work instructions after disconnecting the battery - section on

"Disconnecting and connecting"

4477

2. Remove cover of console at the left and right. → 681419 Removing and installing centre console cover -

section on "Removing"

3. Remove centre console cover. → 681919 Removing and installing centre console cover - section on

"Removing"

4. Remove centre console. → 681719 Removing and installing centre console - section on "Removing"

5. If installed, remove control unit for tilt sensor. → 966319 Removing and installing control unit for tilt

sensor - section on "Removing"

6. Remove trim panel under dashboard on left. → 701919 Removing and installing trim panel under

dashboard - section on "Removing"

7. Remove front side section trim. → 702419 Removing and installing front side section trim - section on

"Removing"

8. Remove front seat. →   Removing and installing front

seat

9. Remove the rear side-panel lining. → 707519 Removing and installing rear side-panel

lining [997310 997311 997320 997321 997610 997611 997620 997621]→ 707519 Removing and
installing rear side-panel lining [997110 997111 997120 997121 997410 997411 997430 997431]

10. Remove sill. → 680519 Removing and installing inner sill

11. Remove sill support. → 695119 Removing and installing airbag sensor - section on "Removing"

Preliminary work for wire harness for right seat-belt tensioner

1. Disconnect battery. → 271000 A7 Work instructions after disconnecting the battery - section on

"Disconnecting and connecting"

2. Remove cover of console at the left and right. → 681419 Removing and installing centre console cover -

section on "Removing"

3. Remove centre console cover. → 681919 Removing and installing centre console cover - section on

"Removing"

4. Remove centre console. → 681719 Removing and installing centre console - section on "Removing"

5. If installed, remove control unit for tilt sensor. → 966319 Removing and installing control unit for tilt

sensor - section on "Removing"

6. Remove glove compartment. → 681519 Removing and installing glove compartment - section on

"Removing"

7. Remove front side section trim. → 702419 Removing and installing front side section trim - section on

"Removing"

8. Remove front seat. →   Removing and installing front

seat

9. Remove the rear side-panel lining. → 707519 Removing and installing rear side-panel

lining [997310 997311 997320 997321 997610 997611 997620 997621]→ 707519 Removing and
installing rear side-panel lining [997110 997111 997120 997121 997410 997411 997430 997431]

10. Remove sill. → 680519 Removing and installing inner sill

11. Remove sill support. → 695119 Removing and installing airbag sensor - section on "Removing"

Diagnostic system: reading out fault memory and activating systems

Preliminary work for wire harness for left seat-belt tensioner

4478

Preliminary work for wire harness for left head airbag (triggering unit to
A-pillar connection point)

1. Disconnect battery. → 271000 A7 Work instructions after disconnecting the battery - section on

"Disconnecting and connecting"

2. Remove cover of console at the left and right. → 681419 Removing and installing centre console cover -

section on "Removing"

3. Remove centre console cover. → 681919 Removing and installing centre console cover - section on

"Removing"

4. Remove centre console. → 681719 Removing and installing centre console - section on "Removing"

5. If installed, remove control unit for tilt sensor. → 966319 Removing and installing control unit for tilt

sensor - section on "Removing"

6. Remove trim panel under dashboard on left. → 701919 Removing and installing trim panel under

dashboard - section on "Removing"

7. Remove front side section trim. → 702419 Removing and installing front side section trim - section on

"Removing"

Preliminary work for wire harness for right head airbag (triggering unit to
A-pillar connection point)

1. Disconnect battery. → 271000 A7 Work instructions after disconnecting the battery - section on

"Disconnecting and connecting"

2. Remove cover of console at the left and right. → 681419 Removing and installing centre console cover -

section on "Removing"

3. Remove centre console cover. → 681919 Removing and installing centre console cover - section on

"Removing"

4. Remove centre console. → 681719 Removing and installing centre console - section on "Removing"

5. If installed, remove control unit for tilt sensor. → 966319 Removing and installing control unit for tilt

sensor - section on "Removing"

6. Remove glove compartment. → 681519 Removing and installing glove compartment - section on

"Removing"

7. Remove front side section trim. → 702419 Removing and installing front side section trim - section on

"Removing"

Preliminary work for head airbag wire harness (head airbag to A-pillar
connection point)

1. Remove front side section trim. → 702419 Removing and installing front side section trim - section on

"Removing"

2. Remove door trim panel. → 705919 Removing and installing door trim panel - section on "Removing"

Diagnostic system: reading out fault memory and activating systems

Preliminary work for wire harness for left head airbag (triggering unit to A-pillar connection point)4479

Tools and materials

Tools

Wire puller

Commercially available tool for pulling electric wires through.

Installing wire harness for airbag

Installing components for airbag from triggering unit to passenger's airbag
unit or seat-belt tensioner

WARNING

Danger of injury and material damage if airbag units are not handled correctly.

→ Always observe the safety regulations for handling airbag units → 691000  Safety regulations for

handling airbag and belt tensioner units

→ Remove ignition key. Disconnect battery. Route or isolate the ground strap so that all contact with

a ground carrier (e.g. body, seat frame) is avoided. → 2706IN Working instructions after
disconnecting the battery

→ After the battery is disconnected, always wait for 1 minute before disconnecting the airbag plugs.

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Tools and materials

4480
