Porshe 911 (997). Manual - part 1068





1.2. Position plastic bracket -2- on roof frame 3 -8- and screw down with the two fastening screws -3- .

→ Tightening torque: 3 (2 ftlb.) Nm

Pressing wire harness into cable duct

2. Press wire harness into cable duct.

2.1. Press wire harness into cable duct.

Installing potentiometer.

3. Install

potentiometer.

3.1. Insert potentiometer fork into the pins of the hydraulic

housing.

3.2. Position potentiometer -4- on convertible top support and screw down with the two fastening

screws -3- . → Tightening torque: 3 (2 ftlb.) Nm

3.3. Lay wire harness -1- and press into the two clamps -2-

.

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for convertible top

4429

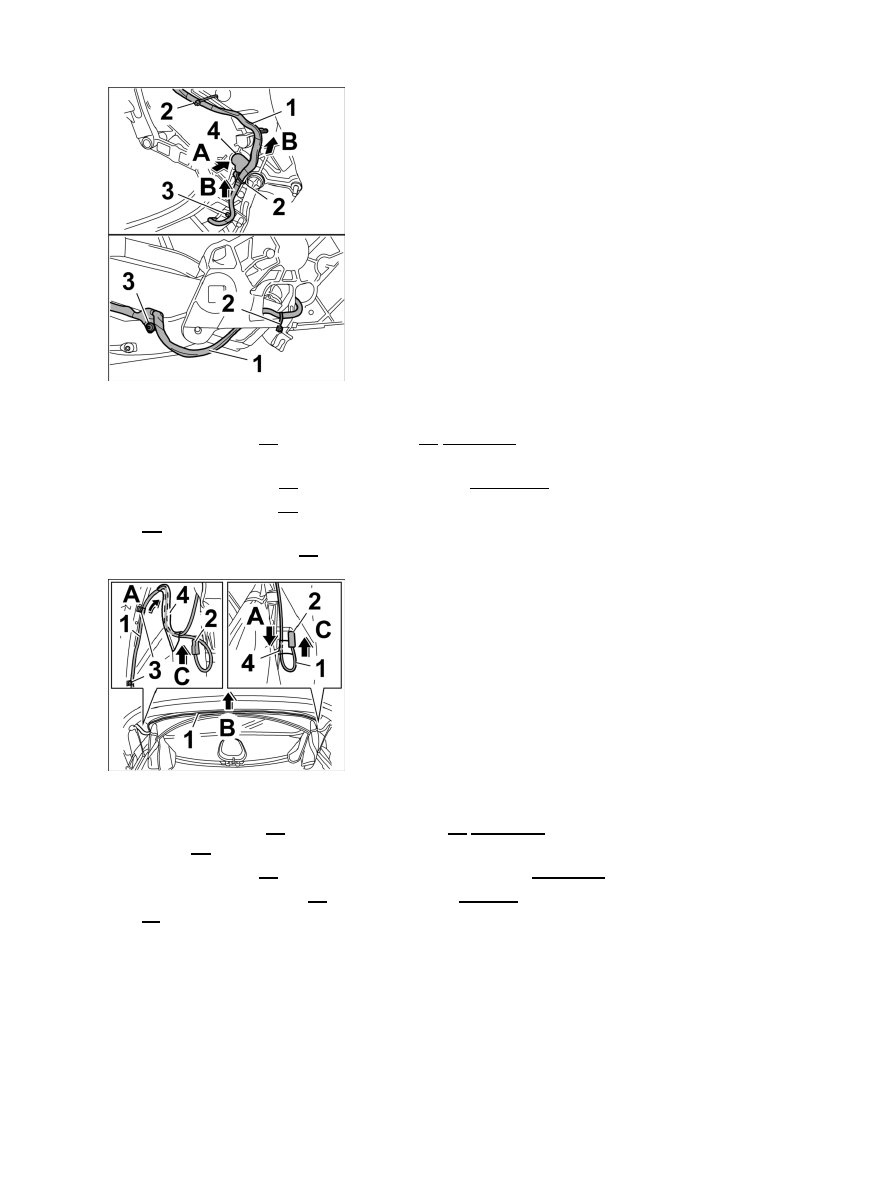

Installing wire harness on convertible-top support

4. Install wire harness on convertible-top support.

4.1. Lay wire harness -1- and insert foam part -4- -Arrow A-

.

4.2. Clip in wire harness -1- at the two retaining clips -Arrows B- .

4.3. Secure wire harness -1- with the two fastening screws

-3-

 .

4.4. Fit three new tie-wraps -2- .

Installing wire harness at rear window

5. Install wire harness at rear window.

5.1. Push wire harness -1- through the fabric plate -4- -Arrow A- and secure with the two fastening

screws -3- .

5.2. Lay wire harness -1- and press into the rear window frame -Arrow B- .

5.3. Push on both connectors -2- at the rear window -Arrows

C-

 .

Connecting wire harness plug connection for convertible top

Diagnostic system: reading out fault memory and activating systems

Connecting wire harness plug connection for convertible top

4430

Connecting wire harness plug connection for convertible top

1. Push together the electric plug connection -1- of the wire harness until it is felt to engage.

Installing plastic panel

Installing plastic panel

1. Install plastic panel.

1.1. Insert fixing clip -1- onto plate of plastic panel from behind -2- and turn 90°

clockwise.

1.2. Position plastic panel -2- on roof frame 1 -3- and screw down with the fastening screws -4- .

Tightening torque → Tightening torque : 5 (3.5 ftlb.) Nm

Installing wire harness for roll-over protection system

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing plastic panel

4431

Overview of plugs for wire harness for roll-over protection system

1

- Wire harness for roll-over protection system

2

- Plug connection for rear side panel flap

3

- Hardtop mount plug connection

4

- Retaining clips

5

- Roll-over bar connector

6

- Convertible top control unit connector

7

- Plug connection for wire harness for roll-over protection system to rear wire harness

8

- Plug connection for motor for convertible-top compartment lid drive mechanism

1. Position wire harness for roll-over protection system -1- on the frame and clip in at the retaining

clips -4- .

2. Press motor plug connection for convertible-top compartment lid drive -8- together until it is felt to

engage. → 617019 Removing and installing drive motor - chapter on "Removing"

3. Push together plug connection for roll-over protection system wire harness to rear wire harness -7-

until it is felt to engage. → 697719 Removing and installing frame for roll-over protection system -
chapter on "Installing"

4. Connect connector to convertible top control unit -6- and lock it until it engages firmly. → 619619

Removing and installing control unit for convertible top - chapter on "Installing"

5. Push in hardtop mount plug connection -3- until it engages securely. → 611719 Removing and installing

mount for hardtop - chapter on "Installing"

6. Push in plug connections for rear side panel flap -2- at left and right until it is felt to engage. → 614219

Removing and installing rear side section flap - "Installing" chapter

Subsequent work

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for roll-over protection system

4432
