1. Release electric plug connection -1- of wire harness -Arrow a- and disconnect.

Removing wire harness for convertible top

Removing wire harness at rear window

1. Remove wire harness at rear window.

1.1. Pull off both connectors -2- at the rear window -Arrows

A-

 .

1.2. Pull out wire harness -1- from the rear window frame -Arrow

B-

 .

1.3. Unscrew the two fastening screws -3- and remove the wire harness -1- from the fabric plate -4-

.

Removing wire harness convertible top support

2. Remove wire harness convertible top support.

2.1. Remove the three tie-wraps -2- .

2.2. Unscrew the two fastening screws -3- .

2.3. Unclip wire harness -1- from the two retaining clips -Arrows

A-

 .

2.4. Remove foam part -4- -Arrow B- .

Diagnostic system: reading out fault memory and activating systems

Disconnecting wire harness plug connection for convertible top

4425

Removing potentiometer

3. Remove

potentiometer.

3.1. Remove wire harness -1- from the two clamps -2- .

3.2. Unscrew the two fastening screws -3- and remove the potentiometer -4- .

Removing wire harness from cable duct

4. Remove wire harness from cable duct.

4.1. Remove wire harness -1- from cable duct -2- .

Diagnostic system: reading out fault memory and activating systems

Removing wire harness for convertible top

4426

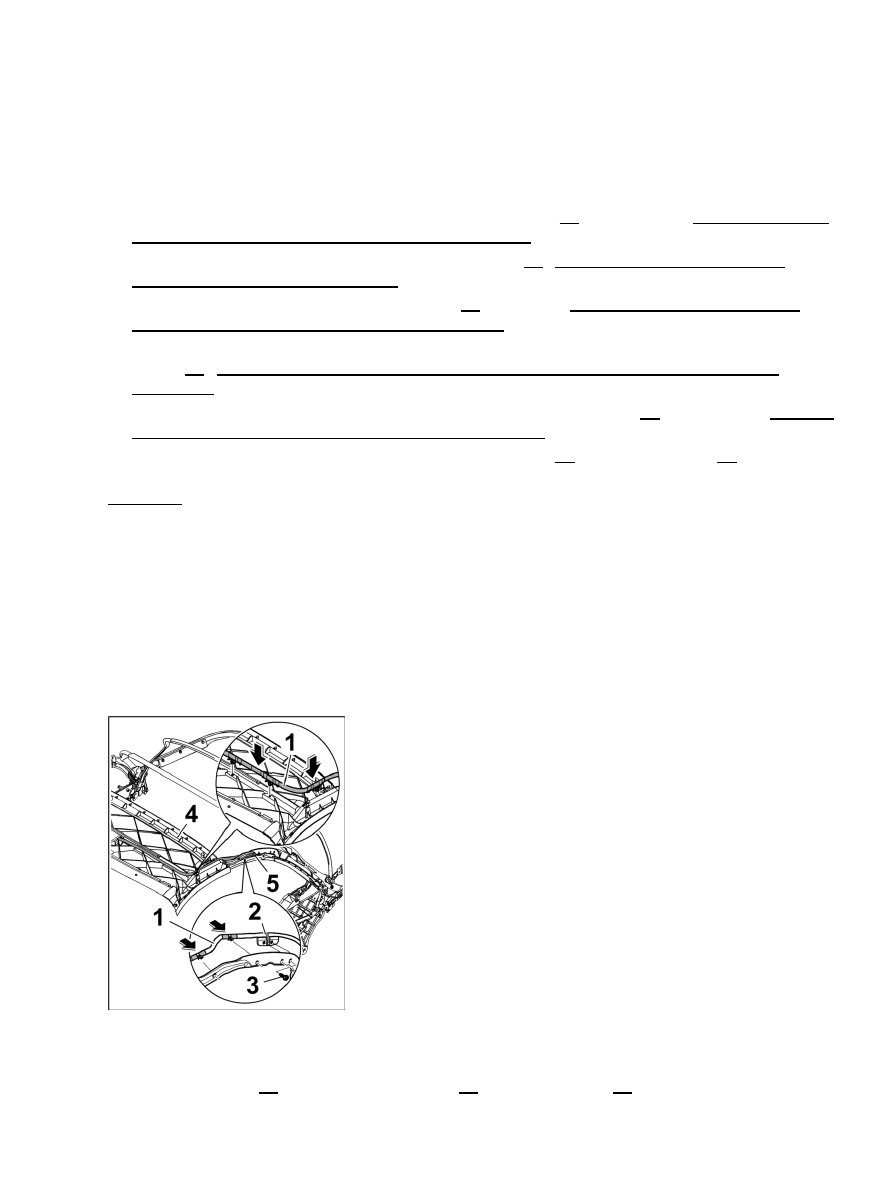

Removing wire harness at roof frame 1 and roof frame 3

5. Removing wire harness at roof frame 1 and roof frame 3

5.1. Unscrew the two fastening screws -3- and remove plastic bracket -2- on roof frame 3 -5-

.

5.2. Unclip wire harness -1- at roof frame 3 -5- and at roof frame 1 -4-

.

Removing wire harness for roll-over protection system

Installation Location:

Overview of plugs for wire harness for roll-over protection system

1

- Wire harness for roll-over protection system

2

- Plug connection for rear side panel flap

3

- Hardtop mount plug connection

4

- Retaining clips

Diagnostic system: reading out fault memory and activating systems

Removing wire harness for roll-over protection system

4427

5

- Roll-over bar connector

6

- Convertible top control unit connector

7

- Plug connection for wire harness for roll-over protection system to rear wire harness

8

- Plug connection for motor for convertible-top compartment lid drive mechanism

1. Release and disconnect plug connections for rear side panel flap -2- at left and right. → 614219 Removing

and installing rear side section flap - chapter on "Removing"

2. Release and disconnect plug connection for hardtop mount -3- . → 611719 Removing and installing

hardtop mount - chapter on "Removing"

3. Release connector on convertible top control unit -6- and pull off. → 619619 Removing and installing

control unit for convertible top - chapter on "Removing"

4. Release and disconnect plug connection for roll-over protection system wire harness to rear wire

harness -7- . → 697719 Removing and installing frame for roll-over protection system - chapter on
"Removing"

5. Release plug connection on motor for convertible-top compartment lid drive -8- and disconnect. → 617019

Removing and installing drive motor - chapter on "Removing"

6. Unclip and remove wire harness for roll-over protection system -1- at the retaining clips -4- .

Installing wire harness for convertible top

Installing wire harness for convertible top

Installing wire harness at roof frame 1 and roof frame 3

1. Install wire harness at roof frame 1 and roof frame 3.

1.1. Lay wire harness -1- and clip in at roof frame 1 -4- and at roof frame 3 -5- .

Diagnostic system: reading out fault memory and activating systems

 Installing wire harness for convertible top
