Porshe 911 (997). Manual - part 1049





Overview of wire harness for door

Note

Work is only necessary for removing or installing the wire harness for the passenger's door.

Removing lateral footwell trim on passenger's side

1. Partly loosen carpet -1- at the bottom in the area of the A-pillar -arrow A- .

2. Unscrew both plastic nuts -2- and take off the footwell trim panel -3- -arrow B-

.

Disconnect wire harness for door (driver's side) at the A-pillar

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing lateral footwell trim on passenger's side

4353

Overview of wiring harness for door

Unclipping plug connection

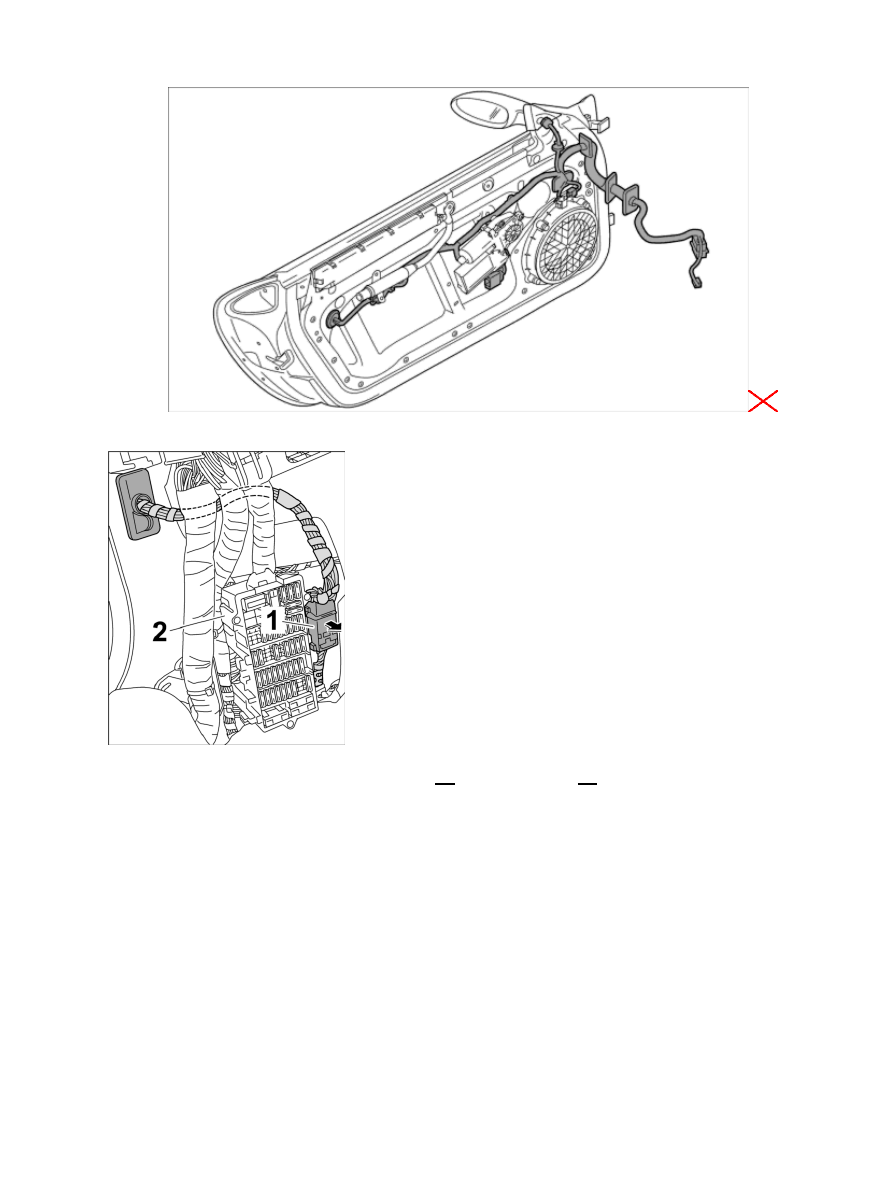

1. Unclip wire harness plug connection for door -1- at the fuse carrier -2- .

Diagnostic system: reading out fault memory and activating systems

Disconnect wire harness for door (driver's side) at the A-pillar

4354

Disconnecting plug connection

2. Release locking mechanism -5- on the wire harness plug connection for door -6- -arrow B- and

disconnect -arrow C- .

Removing rubber sleeve

3. Remove rubber sleeve -7- and pull out together with the wire harness for door -8- from the A-pillar.

Disconnect wire harness for door (passenger's side) at the A-pillar

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnect wire harness for door (passenger's side) at the A-pillar

4355

Overview of wiring harness for door

Disengaging wire harness plug connection for door to the body

1. Disengage wire harness plug connection for door to the body.

Disconnecting wire harness plug connection for door

2. Release locking mechanism on the wire harness plug connection for door -arrow A- and disconnect wire

harness plug connection for door -arrow B- .

Diagnostic system: reading out fault memory and activating systems

Disconnect wire harness for door (passenger's side) at the A-pillar

4356
