Connecting PASM plug connection

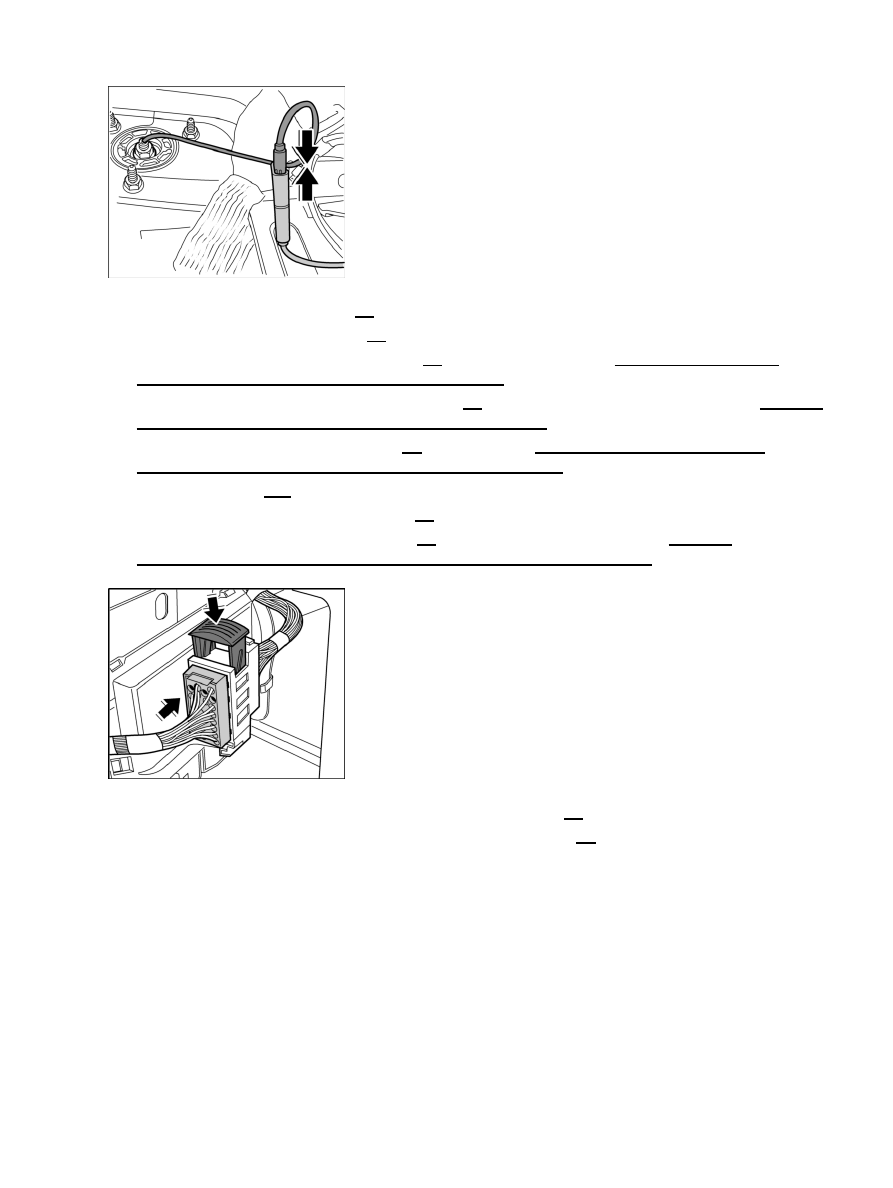

17. Connect PASM plug connection -9- at left and right.

17.1. Connect PASM plug connection -9- until it engages securely.

18. Plug in connector on DME control module -7- until it engages securely. → 247019 Removing and

installing DME control module - section on "Installing"

19. Push in plug connection for rear window heating -6- at left and right until it engages securely. → 648619

Removing and installing rear window - section on "Installing"

20. Plug in connector on seat-belt tensioner -3- at left and right. → 691319 Removing and installing

front three-point seat belt with tensioner - section on "Installing"

20.1. Fit rubber sleeve -30- .

20.2. Plug in connector on seat-belt tensioner -3- at left and right until it engages securely.

21. Attach connector to Tiptronic control unit -2- and lock it until it engages firmly. → 373019

Removing and installing transmission control module - section on "Installing"

Connecting plug connection for main wire harness to rear wire harness

22. Push plug connection for main wire harness to rear wire harness -1- together at left and right.

22.1. Push plug connection for main wire harness to rear wire harness -1- together and lock it.

Completing the vehicle

1. Insert insulating elements in the area of the rear wire harness.

Diagnostic system: reading out fault memory and activating systems

Completing the vehicle

4345

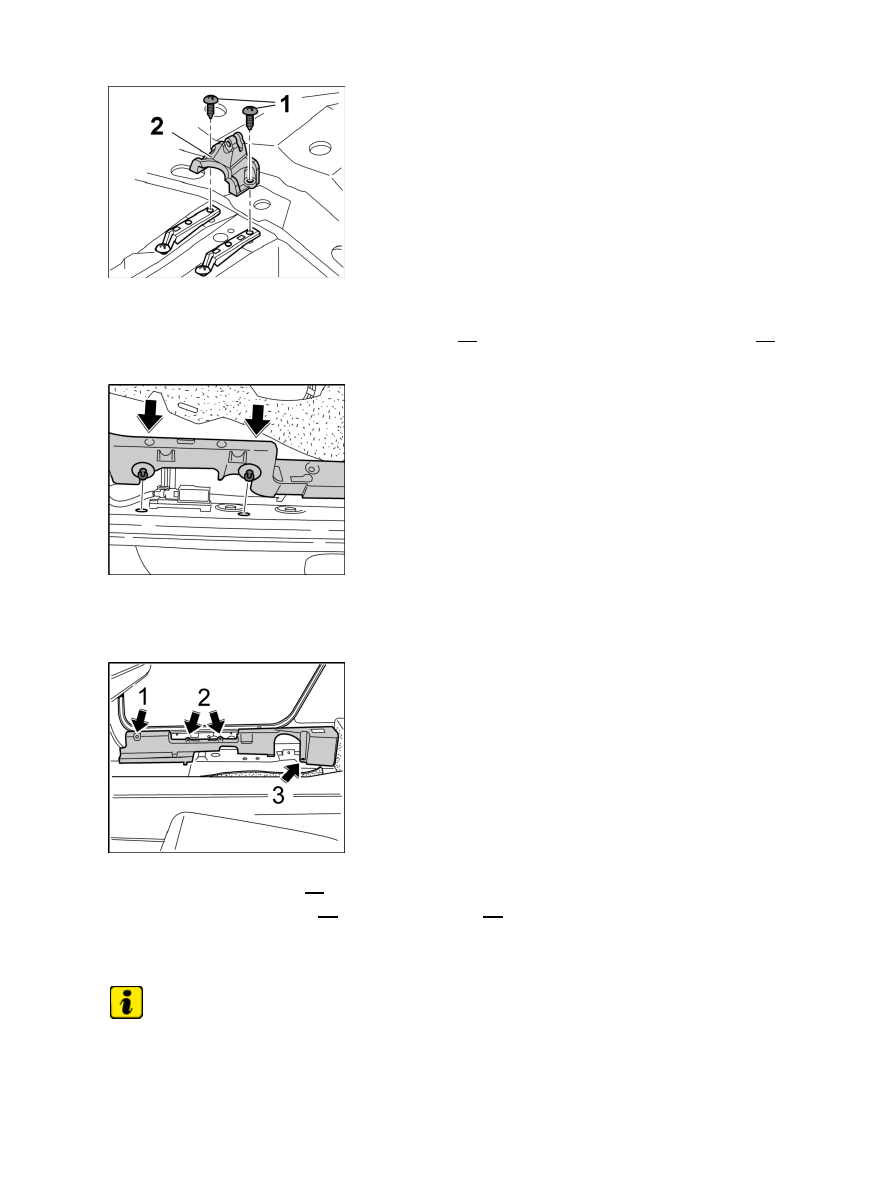

Installing mounting saddle for rear-seat backrest

2. Install mounting saddle for rear-seat backrest.

2.1. Position mounting saddle for rear-seat backrest -2- and secure with the two fastening screws -1- .

→ Tightening torque: 10 (7.5 ftlb.) Nm

Engaging the support

3. Install left and right support.

3.1. Position the support and engage in lower side member.

Securing the support

3.2. Push in the locating peg -1- of the support and check that it is seated correctly.

3.3. Tighten the fastening nuts -3- and fastening screws -2- . → Tightening torque: 7.2 (5.5 ftlb.)

Nm

4. Lay the floor covering over the support and

engage.

Note

Ensure that belt strap can run properly!

Diagnostic system: reading out fault memory and activating systems

Completing the vehicle

4346

Installing seat belt and fitting

5. Secure seat belt mount at left and right.

5.1. Screw in fastening screw -2- , seat belt and fitting -3- and spacer sleeve -4- on inner lower side

member. → Tightening torque: 50 (37 ftlb.) Nm

5.2. Press in cap -1- .

Installing lateral footwell trim on driver's side

6. Install left footwell trim panel.

6.1. Insert footwell trim panel -3- ( -arrow A- ) and screw in the three fastening screws -2- . →

Tightening torque: 3 (2 ftlb.) Nm

6.2. Insert the fuse carrier cover -1- with both clips -4- into the lateral footwell trim panel -2- and clip in

-arrow B-

 .

Installing lateral footwell trim on passenger's side

7. Install right footwell trim panel.

7.1. Position footwell trim panel -3- ( -arrow A- ) and screw down with both plastic nuts -2- .

7.2. Secure floor covering -1- at the bottom in the area of the A-pillar -arrow B- .Use double-sided

adhesive tape or suitable adhesive

.

Diagnostic system: reading out fault memory and activating systems

Completing the vehicle

4347

Subsequent work

Subsequent work

Note

Only for vehicles with tyre pressure monitoring

1. Install rear wheel housing liner. → 536919 Removing and installing rear wheel housing liner -

section on "Installing" [997410 997411 997430 997431]→ 536919 Removing and installing rear
wheel housing liner - section on "Installing" [997110 997111 997120 997121]

2. Install rear underbody cover. → 519419 Removing and installing rear cover - section on "Installing"

3. Install reservoir. → 194019 Removing and installing reservoir - section on "Installing"

4. Install air cleaner housing. → 242519 Removing and installing air cleaner housing - section on "Installing"

5. Install rear spoiler. → 635519 Removing and installing rear spoiler - section on

"Installing" [997110 997111 997410 997411]→ 635519 Removing and installing rear spoiler -
section on "Installing" [997120 997121 997430 997431]

6. Install rear light at left and right. → 943119 Removing and installing rear light - section on "Installing"

7. Install auxiliary brake light. → 947019 Removing and installing auxiliary brake light - section on

"Installing"

Note

Only in the cabriolet.

8. Install roll-over bar. → 697219 23 Removing and installing roll-over bar - section on

"Installing"

Note

Only in the cabriolet.

9. Install frame for roll-over protection system. → 697719 23 Removing and installing frame for

roll-over protection system - section on "Installing"

Note

Only in the cabriolet.

10. Install frame for roll-over protection system. → 697719 23 Removing and installing frame for roll-over

protection system - section on "Installing"

11. Install relay carrier. → 979019 Removing and installing relay carrier - section on "Installing"

12. Install trim panel for seat well. → 702919 23 Removing and installing trim panel for seat well - section on

"Installing"

13.

Diagnostic system: reading out fault memory and activating systems
