Disconnecting plug connection for rear wheel sensor

18. Disconnect plug connection for rear wheel sensor -25- at left and right.

18.1. Release the cable retainer -arrow A- and pull off the two connectors -arrow

B-

 .

18.2. Unscrew the fastening nut and remove the connector socket -arrow C- .

18.3. Remove rubber sleeve -30- .

19. Pull off connector on rear antenna for tyre pressure monitoring system -26- at left and right. → 443819

Removing and installing antenna for tyre pressure monitoring system - section on "Removing"

19.1. Unclip tie-wrap -31- .

19.2. Release and pull off connector on rear antenna for tyre pressure monitoring system -26- at left and

right.

19.3. Remove rubber sleeve -30- .

20. Screw off B+ lead -27- on transmission. → 343519 Removing and installing transmission - section on

"Removing" [997410 997411 997430 997431]→ 343519 Removing and installing transmission - section
on "Removing" [997110 997111 997120 997121]

21. Release and pull off connector on reversing light switch -28- . → 947219 Removing and installing

reversing light switch - section on "Removing"

22. Pull rear wire harness out of the engine compartment through the opening in the rear wall into the

interior of the vehicle and remove it.

Installing rear wire harness

Installing rear wire harness

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing rear wire harness

4341

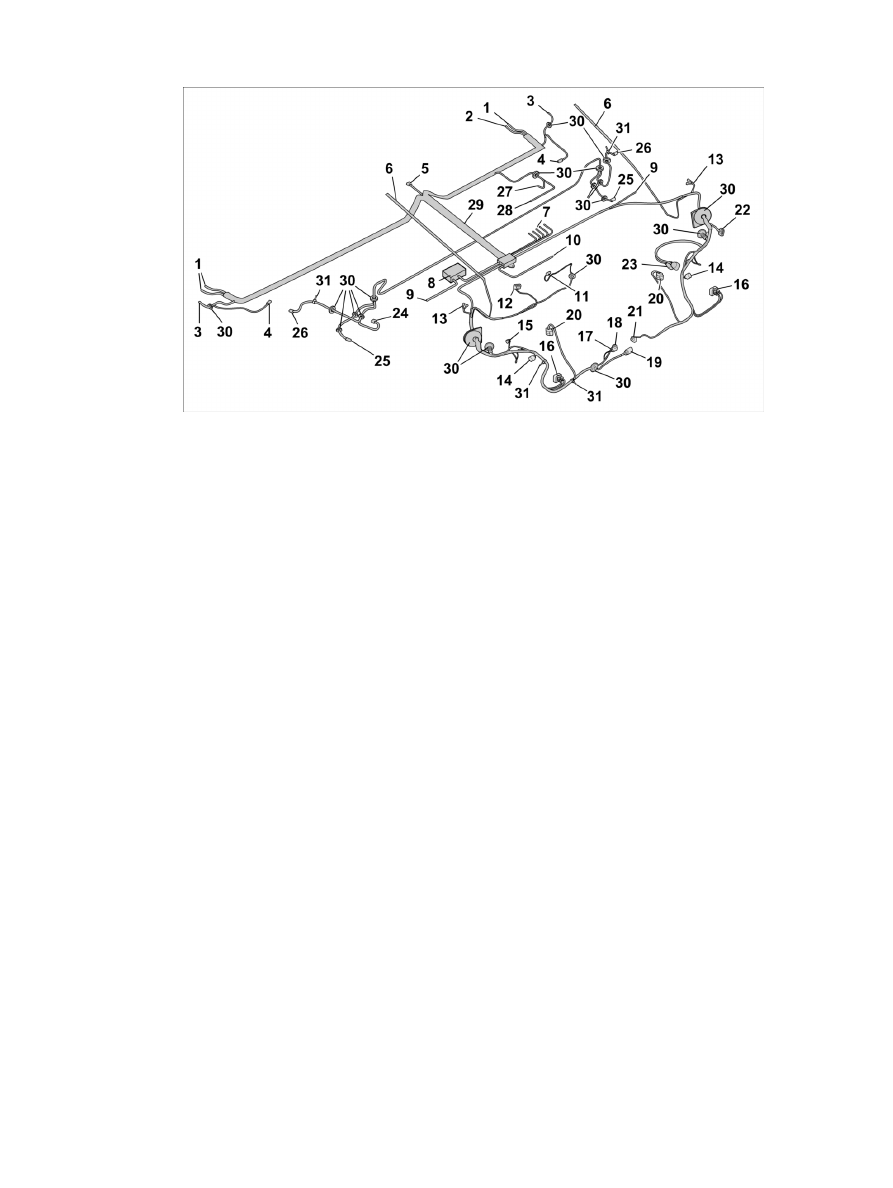

Overview of plugs for rear wire harness

1

- Plug connection for main wire harness to rear wire harness, left and right

2

- Tiptronic control unit connector

3

- Connector for seat-belt tensioner, left and right

4

- Connector for rear loudspeaker, left and right

6

- Plug connection for rear window heating, left and right

7

- DME control module connector

8

- Rear relay carrier

9

- PASM connector, left and right

10

- Subwoofer connector

11

- Connector for auxiliary brake light

12

- Connector for wiper motor for rear window washer

13

- Ground point, left and right

14

- Connector for rear light, left and right

15

- Connector for engine coolant level switch

16

- Plug connection for oxygen sensor, left and right

17

- Plug connection for rear lock lower part

18

- Connector for motor for rear lid release

19

- Plug connection for wire harness for number plate light

20

- Plug for hot-film mass air flow meter

21

- Connector for air cleaner flap

22

- Plug connection for rear wire harness to wire harness for rear lid

23

- Plug connection for rear wire harness to engine wire harness

24

- Plug for angle sensor for HBA, rear left

25

- Plug connection for rear wheel sensor, left and right

26

- Connector for tyre pressure monitoring system antenna, rear left and right

27

- B+ lead for transmission

28

- Connector for reversing light switch

Diagnostic system: reading out fault memory and activating systems

Installing rear wire harness

4342

29

- Cable duct

30

- Rubber sleeves

31

- Tie-wrap

1. Lay rear wire harness in interior of vehicle and push it into the engine compartment through the opening

in the rear wall. Lay rear wire harness in engine compartment.

2. Plug in connector on reversing light switch -28- until it engages correctly. → 947219 Removing and

installing reversing light switch - section on "Installing"

3. Screw down B+ lead -27- on transmission. → Tightening torque: 10 (7.5 ftlb.) Nm → 343519

Removing and installing transmission - section on "Installing" [997410 997411 997430
997431]→ 343519 Removing and installing transmission - section on "Installing" [997110
997111 997120 997121]

4. Plug in connector on rear antenna for tyre pressure monitoring system -26- at left and right.

→ 443819 Removing and installing antenna for tyre pressure monitoring system - section on
"Installing"

4.1. Fit rubber sleeve -30- .

4.2. Plug in connector on rear antenna for tyre pressure monitoring system -26- at left and right until it

engages securely.

4.3. Clip tie-wrap -31- into place.

Connecting plug connection for rear wheel sensor

5. Connect plug connection for rear wheel sensor -25- at left and right.

5.1. Fit rubber sleeve -30- .

5.2. Place socket in installation position -arrow A- and screw on the fastening nut. → Tightening

torque: 10 (7.5 ftlb.) Nm

5.3. Plug in the two connectors -arrow

B-

 .

5.4. Fold back the cable retainer -arrow C- until it engages correctly at the connectors.

6. Connect plug on angle sensor for HBA at rear left -24- . → 947919 Removing and installing rear angle

sensor for headlight levelling system - section on "Installing"

6.1. Fit rubber sleeve -30- .

6.2. Plug in connector on rear left angle sensor for HBA -24- until it engages

firmly.

Diagnostic system: reading out fault memory and activating systems

Installing rear wire harness

4343

Round connectors for engine wire harness

7. Push plug connection for rear wire harness to engine wire harness -23- together. → 100119

Removing and installing engine - section on "Installing"

7.1. Connect rear wire harness at the two plug connections and lock it by turning the bayonet locks

clockwise.

8. Push plug connection for rear wire harness to wire harness for rear lid together -22- until it engages

securely. → 559019 Removing and installing rear lid - section on "Installing"

9. Plug in connector on motor for rear lid release -18- until it engages firmly. → 558419 Removing and

installing motor for rear lid release - section on "Installing"

10. Push plug connection on rear lock lower part -17- together until it engages securely. → 558619

Removing and installing rear lock lower part - section on "Installing"

11. Push in plug connection for oxygen sensor -16- at left and right until it engages securely. → 246919

Removing and installing oxygen sensor ahead of catalytic converter - section on "Installing"

12. Clip tie-wrap -31- into place.

13. Clip in cable duct -29- .

Securing ground point

14. Secure ground point -13- at left and right.

14.1. Connect ground straps and screw down fastening nut. → Tightening torque: 9 (6.5 ftlb.) Nm

15. Plug in connector on wiper motor for rear window washer -12- until it engages correctly. → 923419

Removing and installing wiper motor for rear window washer - section on "Installing"

16. Plug in connector on subwoofer -10- until it engages firmly. → 913619 Removing and installing

subwoofer - section on "Installing"
