4. Disengage floor covering at the support and lay it in the vehicle

interior.

Unlocking locating peg using the removal tool

5. Remove left and right support.

5.1. Unlock locating peg -1- of the support using the commercially available removal tool

Disassembly tool, universal NR.21

.

Unscrewing fastening screws

5.2. Unscrew fastening screws -2- and nuts -3- and carefully pull the support up and out of the retaining

points.

Removing mounting saddle for rear-seat backrest

6. Remove mounting saddle for rear-seat backrest.

6.1. Unscrew the two fastening screws -1- and remove mounting saddle for rear-seat backrest -2- .

7. Remove insulating elements in the area of the rear wire harness.

Diagnostic system: reading out fault memory and activating systems

Exposing rear wire harness

4337

Removing rear wire harness

Installation Location:

Overview of plugs for rear wire harness

1

- Plug connection for main wire harness to rear wire harness, left and right

2

- Tiptronic control unit connector

3

- Connector for seat-belt tensioner, left and right

4

- Connector for rear loudspeaker, left and right

6

- Plug connection for rear window heating, left and right

7

- DME control module connector

8

- Rear relay carrier

9

- PASM connector, left and right

10

- Subwoofer connector

11

- Connector for auxiliary brake light

12

- Connector for wiper motor for rear window washer

13

- Ground point, left and right

14

- Connector for rear light, left and right

15

- Connector for engine coolant level switch

16

- Plug connection for oxygen sensor, left and right

17

- Plug connection for rear lock lower part

18

- Connector for motor for rear lid release

19

- Plug connection for wire harness for number plate light

20

- Plug for hot-film mass air flow meter

21

- Connector for air cleaner flap

22

- Plug connection for rear wire harness to wire harness for rear lid

23

- Plug connection for rear wire harness to engine wire harness

24

- Plug for angle sensor for HBA, rear left

Diagnostic system: reading out fault memory and activating systems

Removing rear wire harness

4338

25

- Plug connection for rear wheel sensor, left and right

26

- Connector for tyre pressure monitoring system antenna, rear left and right

27

- B+ lead for transmission

28

- Connector for reversing light switch

29

- Cable duct

30

- Rubber sleeves

31

- Tie-wrap

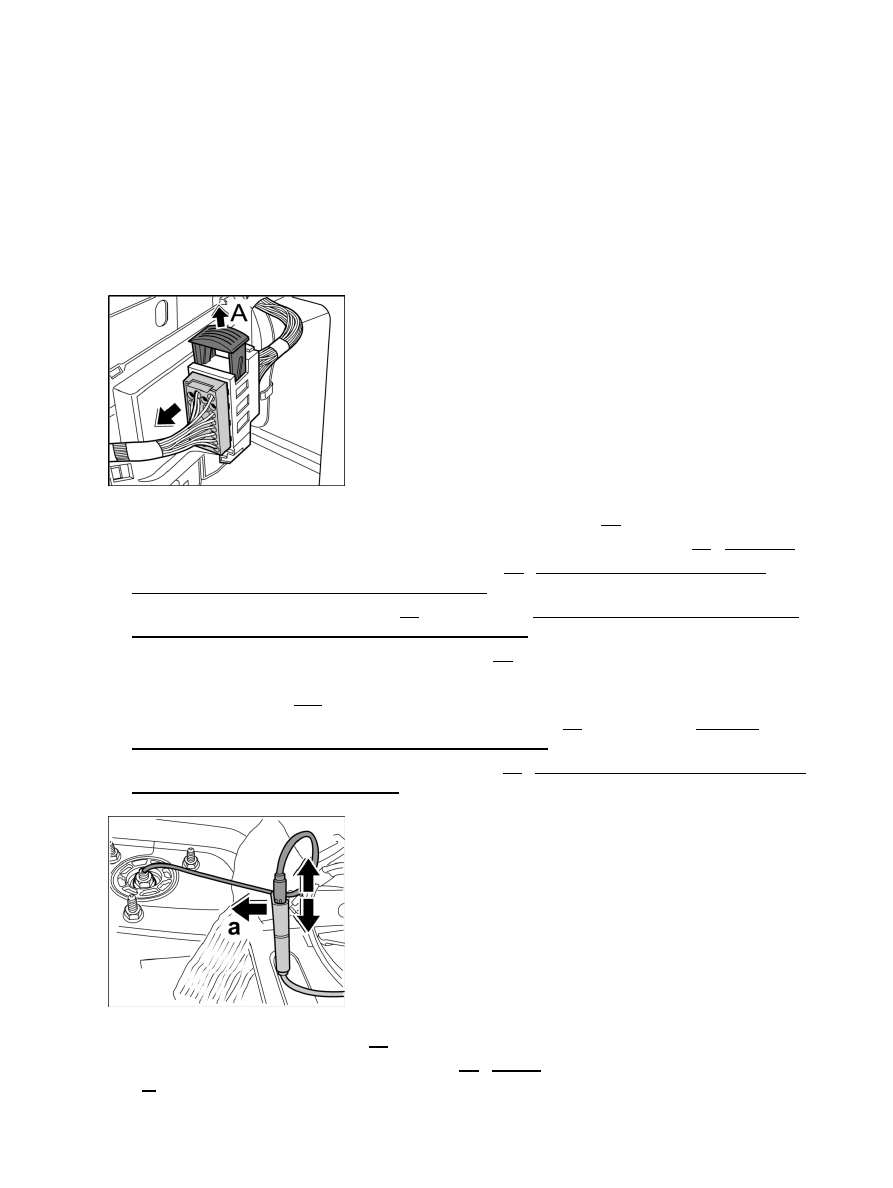

Releasing plug connection for main wire harness to rear wire harness

1. Disconnect plug connection for main wire harness to rear wire harness -1- at left and right.

1.1. Release and disconnect plug connection for main wire harness to rear wire harness -1- ( -arrow A- ).

2. Release and pull off connector on Tiptronic control unit -2- . → 373019 Removing and installing

transmission control module - section on "Removing"

3. Pull off connector on seat-belt tensioner -3- at left and right. → 691319 Removing and installing front

three-point seat belt with tensioner - section on "Removing"

3.1. Release and pull off connector on seat-belt tensioner -3- at left and

right.

3.2. Remove rubber sleeve -30- .

4. Release and disconnect plug connection for rear window heating -6- at left and right. → 648619

Removing and installing rear window - section on "Removing"

5. Release and pull off connector on DME control module -7- . → 247019 Removing and installing DME

control module - section on "Removing"

Disconnecting PASM plug connection

6. Disconnect PASM plug connection -9- at left and right.

6.1. Release and disconnect PASM plug connection -9- ( -arrow

a-

 ).

Diagnostic system: reading out fault memory and activating systems

Removing rear wire harness

4339

7. Release and pull off connector on subwoofer -10- . → 913619 Removing and installing subwoofer - section

on "Removing"

8. Release and pull off connector on wiper motor for rear window washer -12- . → 923419 Removing and

installing wiper motor for rear window washer - section on "Removing"

Loosening ground point

9. Loosen ground point -13- at left and right.

9.1. Screw off fastening nut and remove ground straps.

10. Unclip cable duct -29- .

11. Unclip tie-wrap -31- .

12. Release and disconnect plug connection for oxygen sensor -16- at left and right. → 246919 Removing and

installing oxygen sensor ahead of catalytic converter - section on "Removing"

13. Release and disconnect plug connection on rear lock lower part -17- . → 558619 Removing and installing

rear lock lower part - section on "Removing"

14. Release and pull off connector on motor for rear lid release -18- . → 558419 Removing and installing

motor for rear lid release - section on "Removing"

15. Release and disconnect plug connection for rear wire harness to wire harness for rear lid -22- . → 559019

Removing and installing rear lid - section on "Removing"

Round connectors for engine wire harness

16. Disconnect plug connection for rear wire harness to engine wire harness -23- . → 100119 Removing and

installing engine - section on "Removing"

16.1. Release rear wire harness at the two plug connections and disconnect it by turning the bayonet locks

anti-clockwise.

17. Disconnect plug on angle sensor for HBA at rear left -24- . → 947919 Removing and installing rear angle

sensor for headlight levelling system - section on "Removing"

17.1. Release and pull off connector on angle sensor for HBA at rear left -24- .

17.2. Remove rubber sleeve -30- .

Diagnostic system: reading out fault memory and activating systems

Removing rear wire harness
