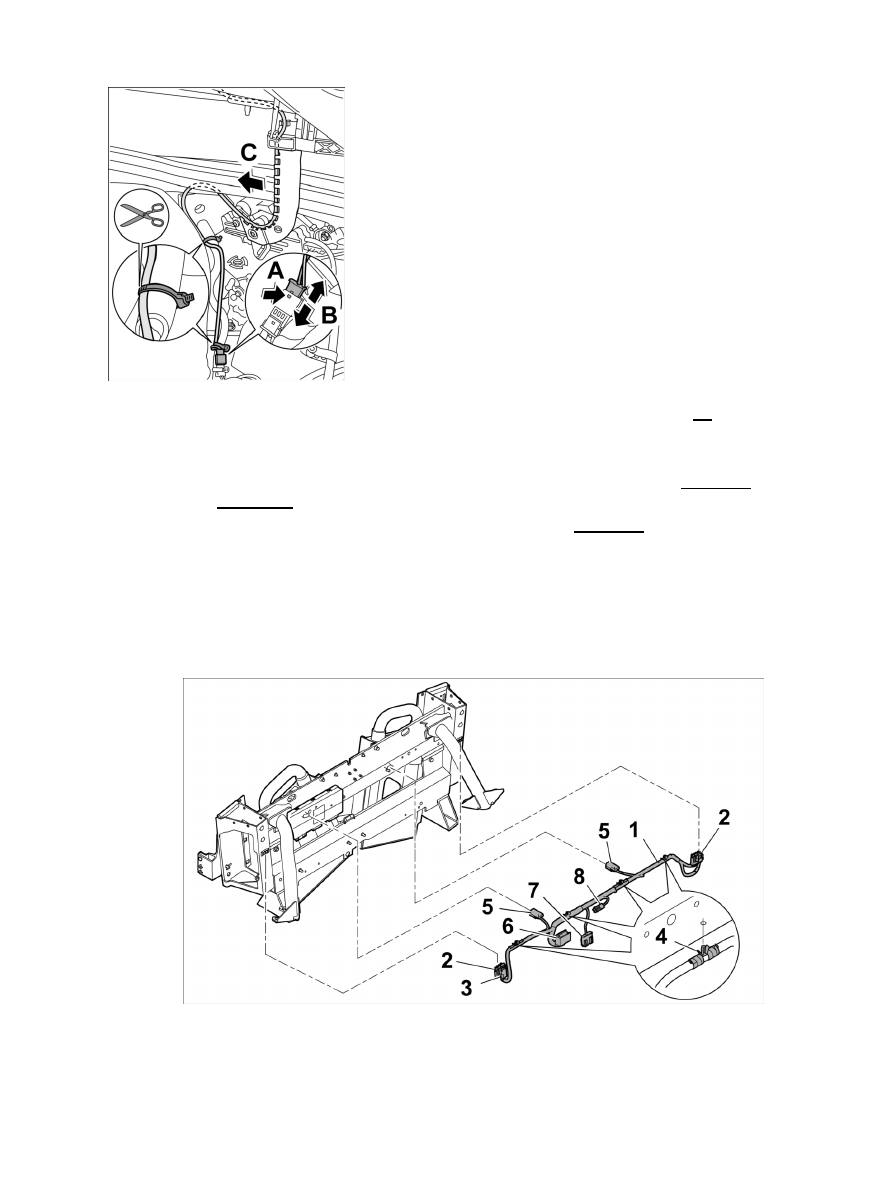

Disconnecting plug connection between wire harness for auxiliary stop light and rear wire harness

2. Disconnect wire harness plug connection for auxiliary stop light to rear wire harness -3- and expose wire

harness for auxiliary stop light.

2.1. Cut both tie-wraps on the wire harness for auxiliary stop light.

2.2. Release wire harness plug connection for auxiliary stop light to rear wire harness -arrow A- and

disconnect -arrows B- .

2.3. Pull wire harness for auxiliary stop light out of the fastening part -arrow C- .

Removing wire harness for roll-over protection system (cabriolet)

Installation Location:

Overview of plugs for wire harness for roll-over protection system

1

- Wire harness for roll-over protection system

2

- Plug connection for rear side panel flap

3

- Hardtop mount plug connection

Diagnostic system: reading out fault memory and activating systems

Removing wire harness for roll-over protection system (cabriolet)

4321

4

- Retaining clips

5

- Roll-over bar connector

6

- Convertible top control unit connector

7

- Plug connection for wire harness for roll-over protection system to rear wire harness

8

- Plug connection for motor for convertible-top compartment lid drive mechanism

1. Release and disconnect plug connection for hardtop mount -3- . → 611719 Removing and installing

hardtop mount - section on "Removing"

2. Release and disconnect plug connections for rear side panel flap -2- at left and right. → 614219 Removing

and installing rear side panel flap - section on "Removing"

3. Unclip and remove wire harness for roll-over protection system -1- at the retaining clips -4- .

Installing rear wire harness

Installing rear wire harness

Installation Location:

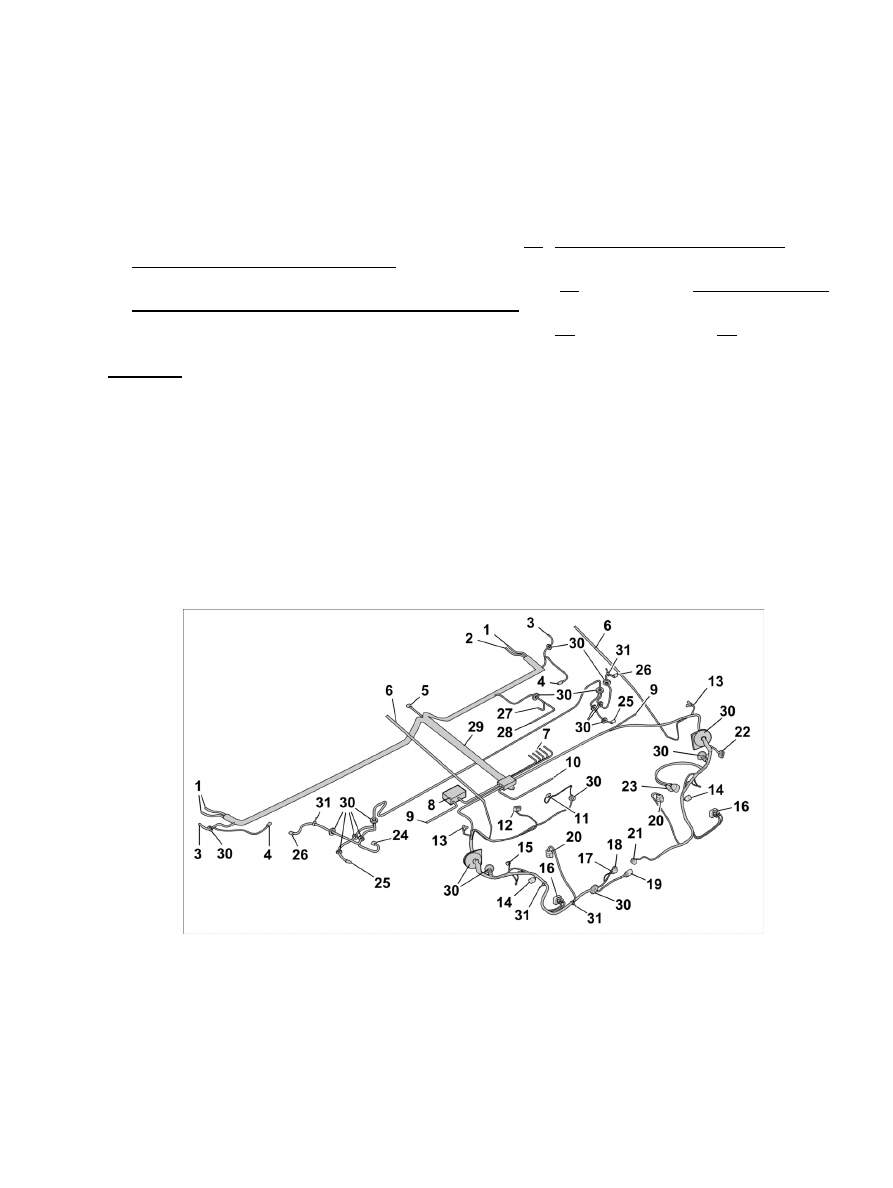

Overview of plugs for rear wire harness

1

- Plug connection for main wire harness to rear wire harness, left and right

2

- Tiptronic control unit connector

3

- Connector for seat-belt tensioner, left and right

4

- Connector for rear loudspeaker, left and right

6

- Plug connection for rear window heating, left and right

7

- DME control module connector

Diagnostic system: reading out fault memory and activating systems

 Installing rear wire harness

4322

8

- Rear relay carrier

9

- PASM connector, left and right

10

- Subwoofer connector

11

- Connector for auxiliary brake light

12

- Connector for wiper motor for rear window washer

13

- Ground point, left and right

14

- Connector for rear light, left and right

15

- Connector for engine coolant level switch

16

- Plug connection for oxygen sensor, left and right

17

- Plug connection for rear lock lower part

18

- Connector for motor for rear lid release

19

- Plug connection for wire harness for number plate light

20

- Plug for hot-film mass air flow meter

21

- Connector for air cleaner flap

22

- Plug connection for rear wire harness to wire harness for rear lid

23

- Plug connection for rear wire harness to engine wire harness

24

- Plug for angle sensor for HBA, rear left

25

- Plug connection for rear wheel sensor, left and right

26

- Connector for tyre pressure monitoring system antenna, rear left and right

27

- B+ lead for transmission

28

- Connector for reversing light switch

29

- Cable duct

30

- Rubber sleeves

31

- Tie-wrap

1. Lay rear wire harness in interior of vehicle and push it into the engine compartment through the opening

in the rear wall. Lay rear wire harness in engine compartment.

2. Plug in connector on reversing light switch -28- until it engages correctly. → 947219 Removing and

installing reversing light switch - section on "Installing"

3. Screw down B+ lead -27- on transmission. → Tightening torque: 10 (7.5 ftlb.) Nm → 343519

Removing and installing transmission - section on "Installing" [997610 997611 997620
997621]→ 343519 Removing and installing transmission - section on "Installing" [997310
997311 997320 997321]

4. Plug in connector on rear antenna for tyre pressure monitoring system -26- at left and right.

→ 443819 Removing and installing antenna for tyre pressure monitoring system - section on
"Installing"

4.1. Fit rubber sleeve -30- .

4.2. Plug in connector on rear antenna for tyre pressure monitoring system -26- at left and right until it

engages securely.

4.3. Clip tie-wrap -31- into place.

Diagnostic system: reading out fault memory and activating systems

Installing rear wire harness

4323

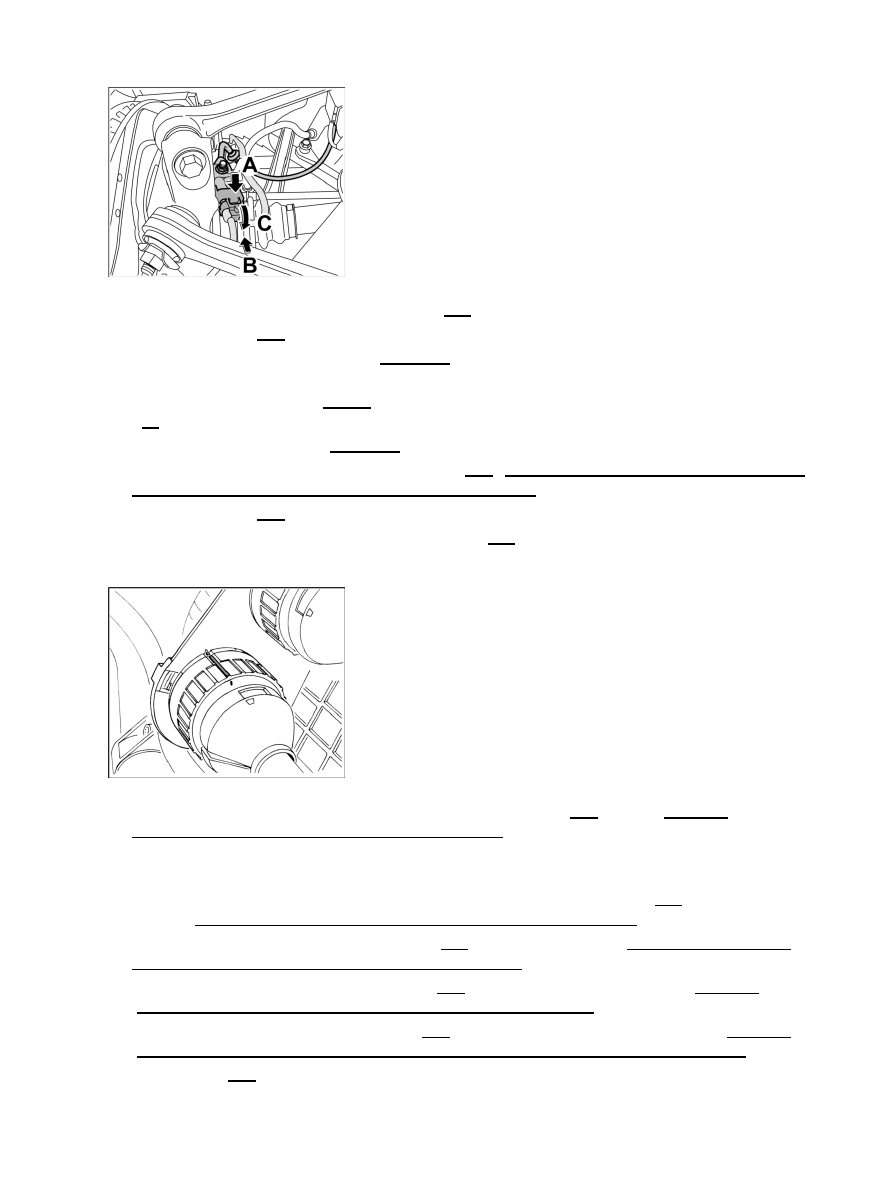

Connecting plug connection for rear wheel sensor

5. Connect plug connection for rear wheel sensor -25- at left and right.

5.1. Fit rubber sleeve -30- .

5.2. Place socket in installation position -arrow A- and screw on the fastening nut. → Tightening

torque: 10 (7.5 ftlb.) Nm

5.3. Plug in the two connectors -arrow

B-

 .

5.4. Fold back the cable retainer -arrow C- until it engages correctly at the connectors.

6. Connect plug on angle sensor for HBA at rear left -24- . → 947919 Removing and installing rear angle

sensor for headlight levelling system - section on "Installing"

6.1. Fit rubber sleeve -30- .

6.2. Plug in connector on rear left angle sensor for HBA -24- until it engages

firmly.

Round connectors for engine wire harness

7. Push plug connection for rear wire harness to engine wire harness -23- together. → 100119

Removing and installing engine - section on "Installing"

7.1. Connect rear wire harness at the two plug connections and lock it by turning the bayonet locks

clockwise.

8. Push plug connection for rear wire harness to wire harness for rear lid together -22- until it engages

securely. → 559019 Removing and installing rear lid - section on "Installing"

9. Plug in connector on motor for rear lid release -18- until it engages firmly. → 558419 Removing and

installing motor for rear lid release - section on "Installing"

10. Push plug connection on rear lock lower part -17- together until it engages securely. → 558619

Removing and installing rear lock lower part - section on "Installing"

11. Push in plug connection for oxygen sensor -16- at left and right until it engages securely. → 246919

Removing and installing oxygen sensor ahead of catalytic converter - section on "Installing"

12. Clip tie-wrap -31- into place.
