25

- Plug connection for rear wheel sensor, left and right

26

- Connector for tyre pressure monitoring system antenna, rear left and right

27

- B+ lead for transmission

28

- Connector for reversing light switch

29

- Cable duct

30

- Rubber sleeves

31

- Tie-wrap

Releasing plug connection for main wire harness to rear wire harness

1. Disconnect plug connection for main wire harness to rear wire harness -1- at left and right.

1.1. Release and disconnect plug connection for main wire harness to rear wire harness -1- ( -arrow A- ).

2. Release and pull off connector on Tiptronic control unit -2- . → 373019 Removing and installing

transmission control module - section on "Removing"

3. Pull off connector on seat-belt tensioner -3- at left and right. → 691319 Removing and installing front

three-point seat belt with tensioner - section on "Removing"

3.1. Release and pull off connector on seat-belt tensioner -3- at left and

right.

3.2. Remove rubber sleeve -30- .

4. Release and disconnect plug connection for rear window heating -6- at left and right. → 648619

Removing and installing rear window - section on "Removing"

5. Release and pull off connector on DME control module -7- . → 247019 Removing and installing DME

control module - section on "Removing" [997310 997311 997320 997321 997611 997620
997621]→ 247019 Removing and installing DME control module - section on "Removing" [997610]

Disconnecting PASM plug connection

6. Disconnect PASM plug connection -9- at left and right.

6.1.

Diagnostic system: reading out fault memory and activating systems

Removing rear wire harness

4317

Release and disconnect PASM plug connection -9- ( -arrow
a-

 ).

7. Release and pull off connector on subwoofer -10- . → 913619 Removing and installing subwoofer - section

on "Removing"

8. Release and pull off connector on wiper motor for rear window washer -12- . → 923419 Removing and

installing wiper motor for rear window washer - section on "Removing"

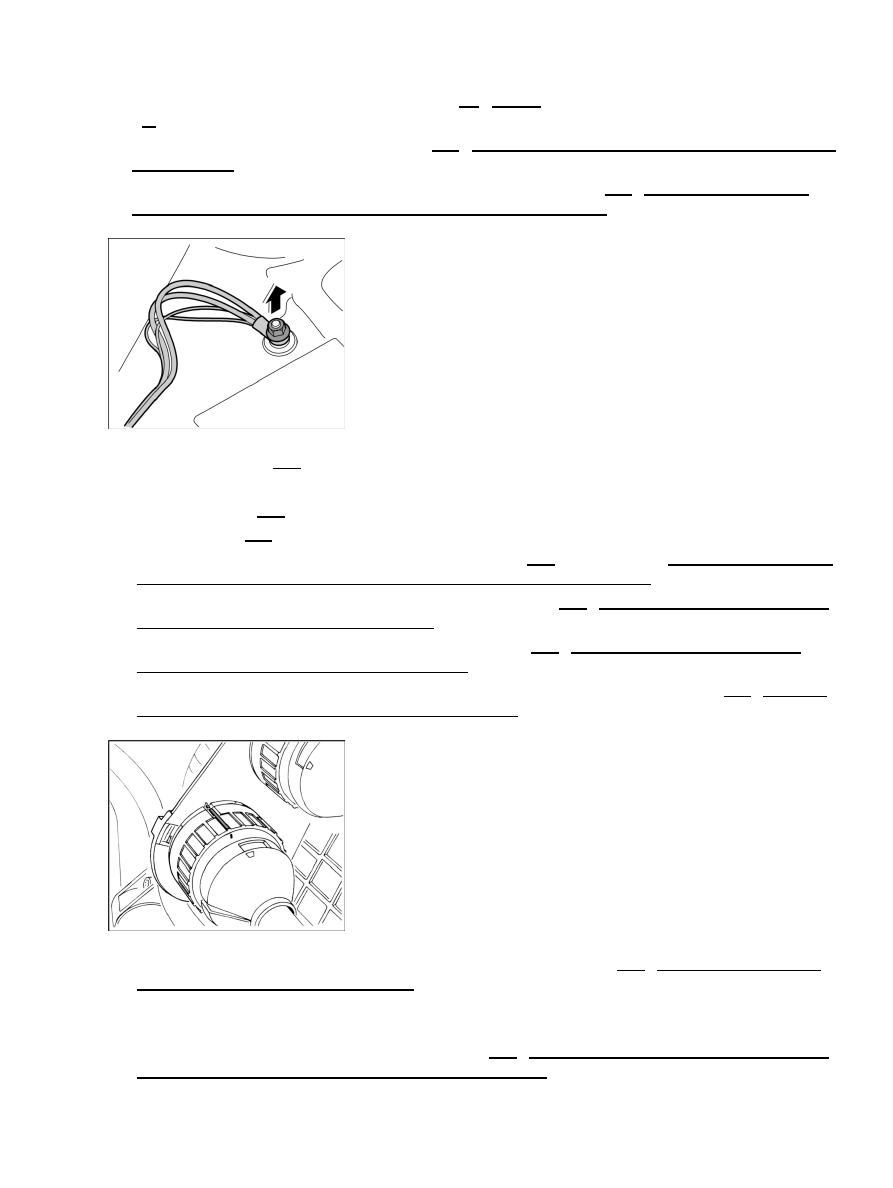

Loosening ground point

9. Loosen ground point -13- at left and right.

9.1. Screw off fastening nut and remove ground straps.

10. Unclip cable duct -29- .

11. Unclip tie-wrap -31- .

12. Release and disconnect plug connection for oxygen sensor -16- at left and right. → 246919 Removing and

installing oxygen sensor ahead of catalytic converter - section on "Removing"

13. Release and disconnect plug connection on rear lock lower part -17- . → 558619 Removing and installing

rear lock lower part - section on "Removing"

14. Release and pull off connector on motor for rear lid release -18- . → 558419 Removing and installing

motor for rear lid release - section on "Removing"

15. Release and disconnect plug connection for rear wire harness to wire harness for rear lid -22- . → 559019

Removing and installing rear lid - section on "Removing"

Round connectors for engine wire harness

16. Disconnect plug connection for rear wire harness to engine wire harness -23- . → 100119 Removing and

installing engine - section on "Removing"

16.1. Release rear wire harness at the two plug connections and disconnect it by turning the bayonet locks

anti-clockwise.

17. Disconnect plug on angle sensor for HBA at rear left -24- . → 947919 Removing and installing rear angle

sensor for headlight levelling system - section on "Removing"

Diagnostic system: reading out fault memory and activating systems

Removing rear wire harness

4318

17.1. Release and pull off connector on angle sensor for HBA at rear left -24- .

17.2. Remove rubber sleeve -30- .

Disconnecting plug connection for rear wheel sensor

18. Disconnect plug connection for rear wheel sensor -25- at left and right.

18.1. Release the cable retainer -arrow A- and pull off the two connectors -arrow

B-

 .

18.2. Unscrew the fastening nut and remove the connector socket -arrow C- .

18.3. Remove rubber sleeve -30- .

19. Pull off connector on rear antenna for tyre pressure monitoring system -26- at left and right. → 443819

Removing and installing antenna for tyre pressure monitoring system - section on "Removing"

19.1. Unclip tie-wrap -31- .

19.2. Release and pull off connector on rear antenna for tyre pressure monitoring system -26- at left and

right.

19.3. Remove rubber sleeve -30- .

20. Screw off B+ lead -27- on transmission. → 343519 Removing and installing transmission - section on

"Removing" [997610 997611 997620 997621]→ 343519 Removing and installing transmission - section
on "Removing" [997310 997311 997320 997321]

21. Release and pull off connector on reversing light switch -28- . → 947219 Removing and installing

reversing light switch - section on "Removing"

22. Pull rear wire harness out of the engine compartment through the opening in the rear wall into the

interior of the vehicle and remove it.

Removing wire harness for auxiliary stop light (Cabriolet)

Diagnostic system: reading out fault memory and activating systems

Removing wire harness for auxiliary stop light (Cabriolet)

4319

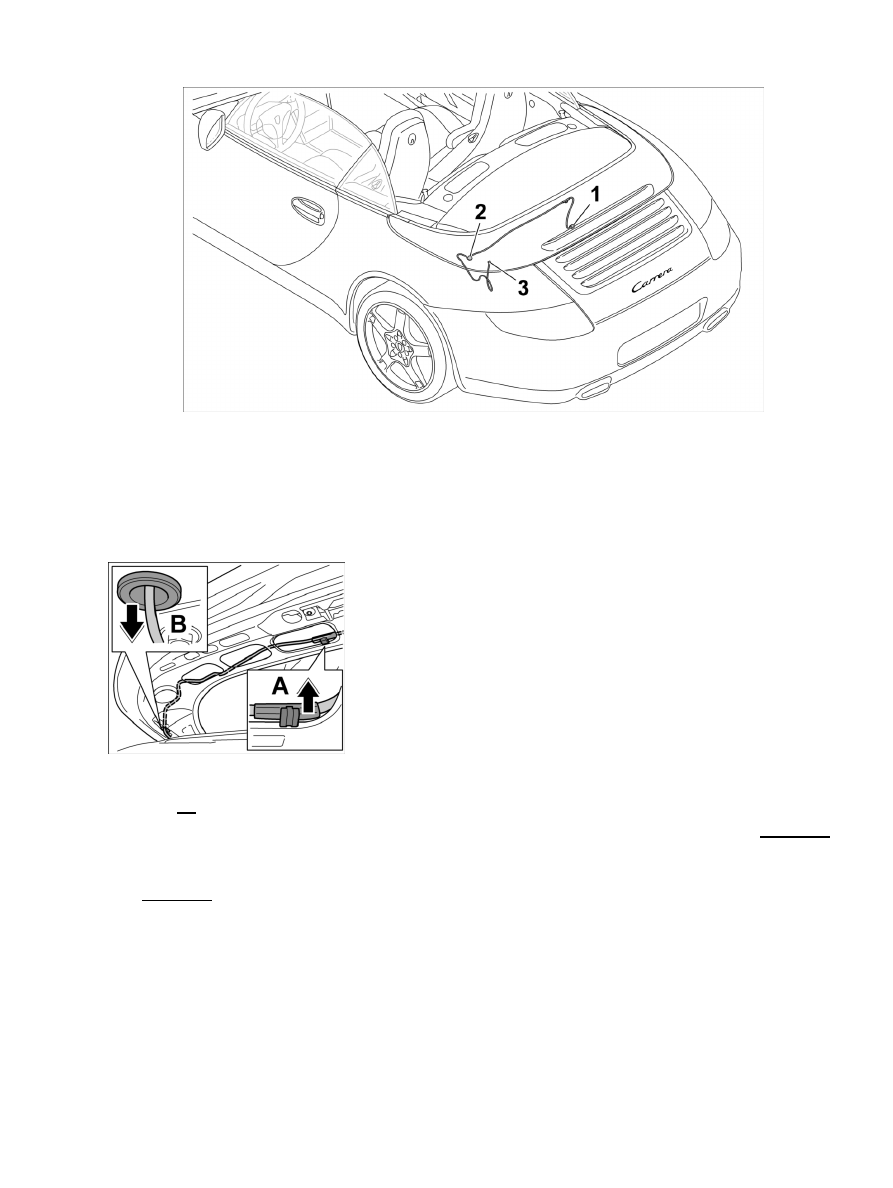

Overview of wire harness for auxiliary stop light

1

-

Connector for auxiliary stop light

2

-

Rubber sleeve

3

-

Plug connection between wire harness for auxiliary stop light and rear wire
harness

Removing rubber sleeve on wire harness for auxiliary stop light

1. Loosen wire harness for auxiliary stop light on convertible top compartment lid and remove rubber

sleeve -2- .

1.1. Remove wire harness for auxiliary stop light on holder from convertible top compartment lid -arrow A-

.

1.2. Remove rubber sleeve of wire harness for auxiliary stop light on convertible top compartment lid

-arrow B-

 and pull out wire harness for auxiliary stop light downward from the convertible top

compartment lid.

Diagnostic system: reading out fault memory and activating systems

Removing wire harness for auxiliary stop light (Cabriolet)

4320
