Porshe 911 (997). Manual - part 1026





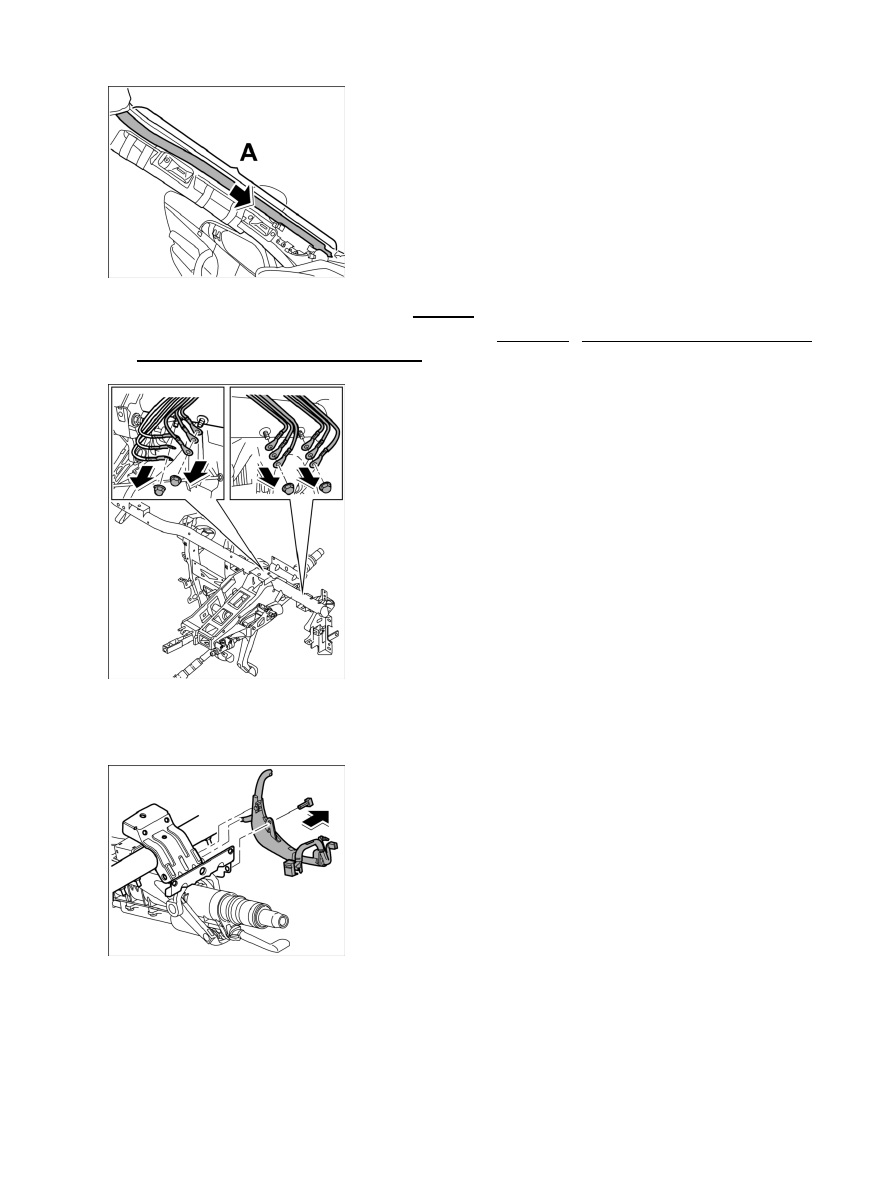

Removing main wire harness from A-pillar

24. Remove main wire harness from A-pillar -Area A- .

25. Pull off connector for antenna amplifier, left and right -89 bis 93- . → 918419 Removing and installing

antenna amplifier - chapter on "Removing"

Loosening ground points on dashboard bracket

26. Loosen ground points on dashboard bracket.

26.1. Unscrew fastening nuts and remove ground straps.

Unclipping length compensation

27. Unclip length compensation at the steering column.

27.1. Remove expansion rivet and length compensation.

Diagnostic system: reading out fault memory and activating systems

Removing main wire harness in passenger compartment

4261

Unclipping cable guide

28. Unclip cable guide on dashboard bracket.

Loosening holder for relay carrier

29. Loosen holder for relay carrier.

29.1. Unscrew the two fastening screws and remove the relay carrier holder from the dashboard bracket.

Loosening main wire harness at left dashboard bracket

30. Loosen main wire harness at left dashboard

bracket.

30.1. Screw off fastening nut and remove fastening screw.

30.2. Unclip main wire harness on cable guide.

Diagnostic system: reading out fault memory and activating systems

Removing main wire harness in passenger compartment

4262

Loosening main wire harness at right dashboard bracket

31. Loosen main wire harness at right dashboard

bracket.

31.1. Unclip main wire harness on both cable guides.

Loosening main wire harness at centre dashboard bracket

32. Loosen main wire harness at centre dashboard

bracket.

32.1. Undo the four tie-wraps and remove main wire harness.

Installing main wire harness

Diagnostic system: reading out fault memory and activating systems

 Installing main wire harness

4263

Installing main wire harness in passenger compartment

Installation Location:

Overview of main wire harness for dashboard

1-3

- Connector for steering column switch

4

- Connector for main light switch

5

- Connector for ignition lock

6

- Connector for diagnostic box

7

- Connector for floor light left

8

- Connector for instrument cluster

9-10

- Connector for passenger's airbag, stage 1 and stage 2

11

- Connector for floor light right

12

- Plug connection for glove compartment

13

- Connector for stopwatch

14

- Connector for sun sensor

15

- Connector for centre speaker

16-17

- Connector for loudspeaker, left and right

18

- Connector for switch console

19-20

- Connector for climate control

21-26

- Connector for PCM

27

- Connector for central locking

28

- Connector for hazard warning light switch

29-30

- Plug connection for illumination of centre nozzle

31-32

- Plug connection for illumination of left and right nozzle

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing main wire harness in passenger compartment

4264
