Porshe 911 (997). Manual - part 1025





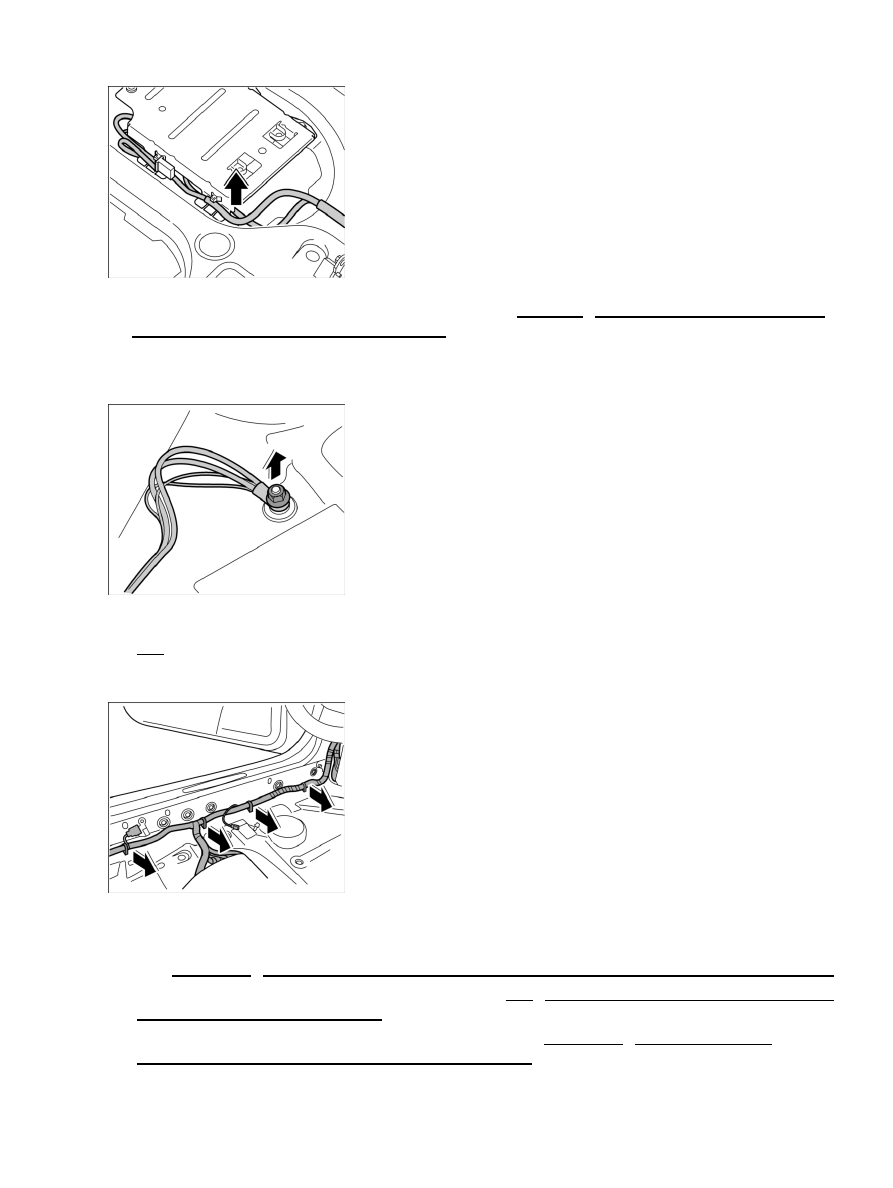

Unclipping wire harness for telephone control unit

9. Release and remove connectors for telephone control unit -50 to 53- . → 919019 Removing and installing

telephone control unit - chapter on "Removing"

9.1. Unclip wire harness for telephone control

unit.

Loosening ground point

10. Loosen ground point under the passenger's seat

-54-

 .

10.1. Screw off fastening nut and remove ground straps.

Unclipping wire harness at door sill

11. Unclip wire harness at door sill.

12. Release and disconnect plug connection between main wire harness and wire harness for door, left and

right -59 and 60- . → 973219 Removing and installing wire harness for door - chapter on "Disconnecting"

13. Release and pull off connector for gateway control unit -65- . → 903519 Removing and installing gateway

control unit - chapter on "Removing"

14. Release and pull off connectors for KESSY/PAS control unit -66 and 67- . → 966619 Removing

and installing KESSY control unit - chapter on "Removing"

15.

Diagnostic system: reading out fault memory and activating systems

Removing main wire harness in passenger compartment

4257

Release and pull off connector for stop light switch -68- . → 943619 Removing and installing stop light
switch - chapter on "Removing".

16. Release and pull off connector for pedal sensor -69- . → 207819 21 Removing and installing pedal sensor

- chapter on "Removing"

Loosening ground point

17. Loosen ground point under the unit carrier -76- .

17.1. Screw off fastening nut and remove ground straps.

18. Release and pull off connector for tilt sensor control unit -77- . → 966319 Tilt sensor control unit - chapter

on "Removing"

Releasing electric plug connection

19. Disconnect plug connections between main wire harness and wire harness for

heater/air-conditioning unit -79 and 80- .

19.1. Release lower plug connection on heater/air-conditioning unit -Arrows a- and disconnect.

Diagnostic system: reading out fault memory and activating systems

Removing main wire harness in passenger compartment

4258

Releasing plug connection

19.2. Release upper plug connection on heater/air-conditioning unit -Arrows a- and disconnect.

Cutting tie-wraps

19.3. Cut tie-wraps (main wire harness to heater/air-conditioning unit wire harness) with side cutters.

Remove main wire harness.

20. Release and disconnect plug connection for rain sensor -86- . → 921219 Removing and installing rain

sensor - chapter on "Removing"

Diagnostic system: reading out fault memory and activating systems

Removing main wire harness in passenger compartment

4259

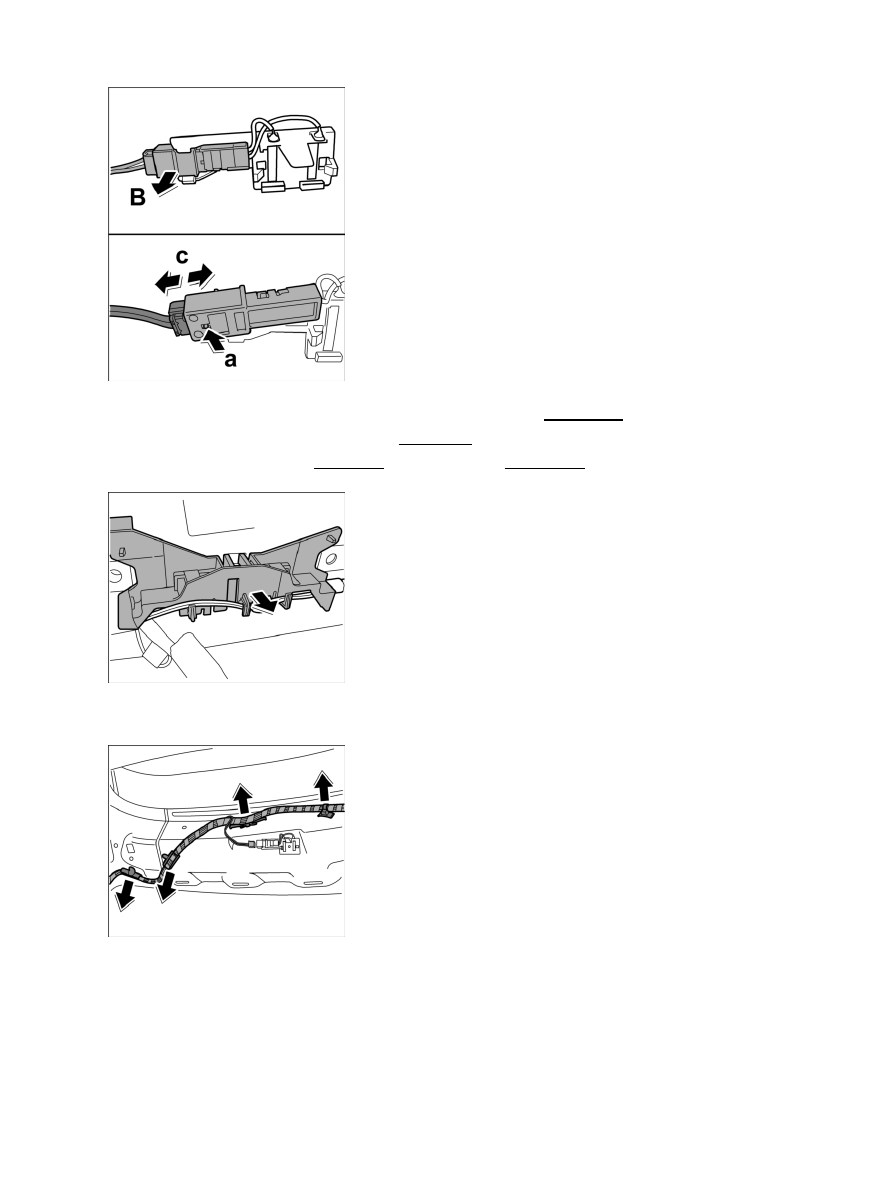

Disconnecting plug connection of make-up mirror

21. Disconnect plug connection of make-up mirror, left and right -87 and 88- .

21.1. Unclip plug connection from console -Arrow B- .

21.2. Release plug connection -Arrow a- and disconnect it -Arrows C- .

Unclipping cable duct at front of roof frame

22. Unclip cable duct at front of roof frame.

Unclipping main wire harness at front of roof frame

23. Unclip main wire harness at front of roof frame.

Diagnostic system: reading out fault memory and activating systems

Removing main wire harness in passenger compartment

4260
