96 60 21 Removing main switch for power supply - as
of MY 2005

- Removing main switch for power supply
- Information

Removing main switch for power supply

Removing main power supply switch

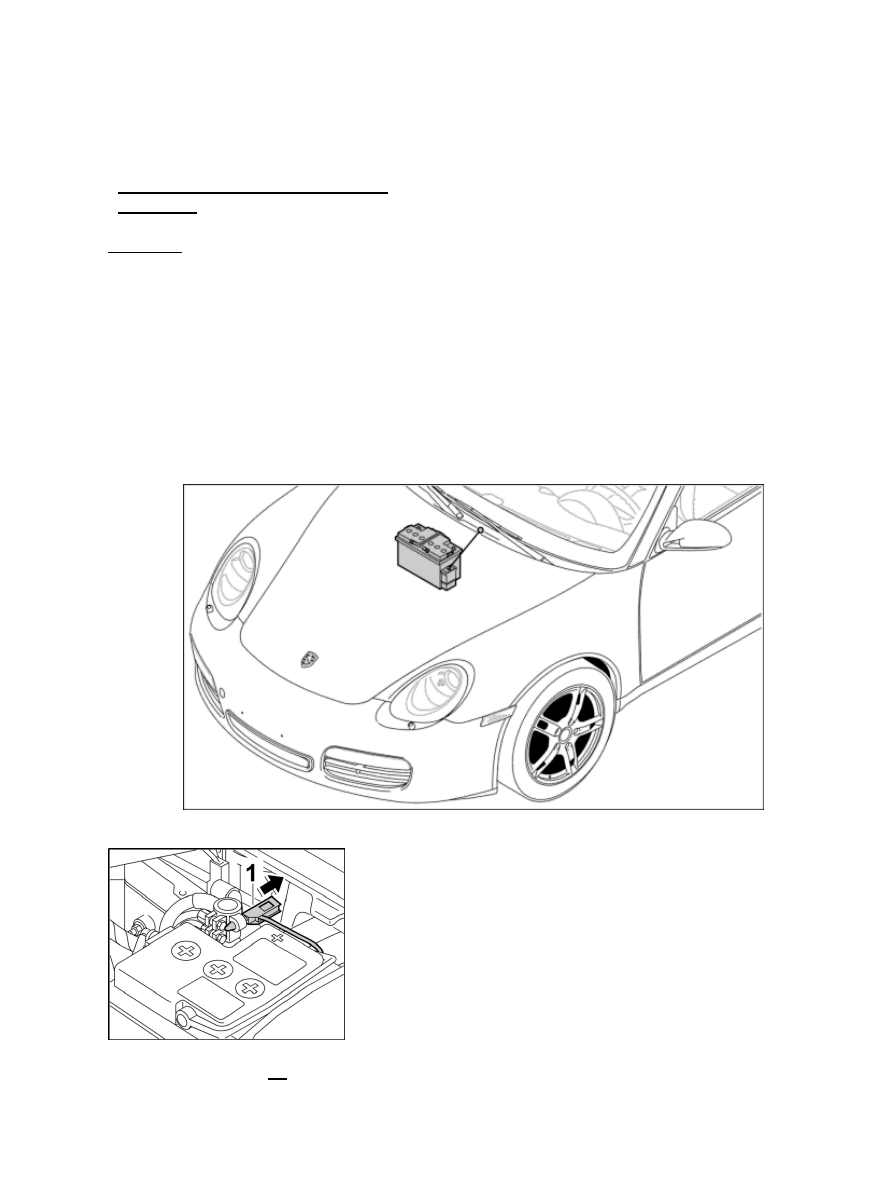

Installation Location:

Installation position

Plug for the main switch

1. Pull off the B+ plug -1- for the main switch (battery disconnect switch) from the battery positive

4193

terminal.

Unscrewing the ground point

2. Unscrew the fastening nut -2- for the ground point on the body and disconnect the negative terminal

-3-

 from the battery.

3. Cover the negative terminal on the battery with a soft, dry cloth.

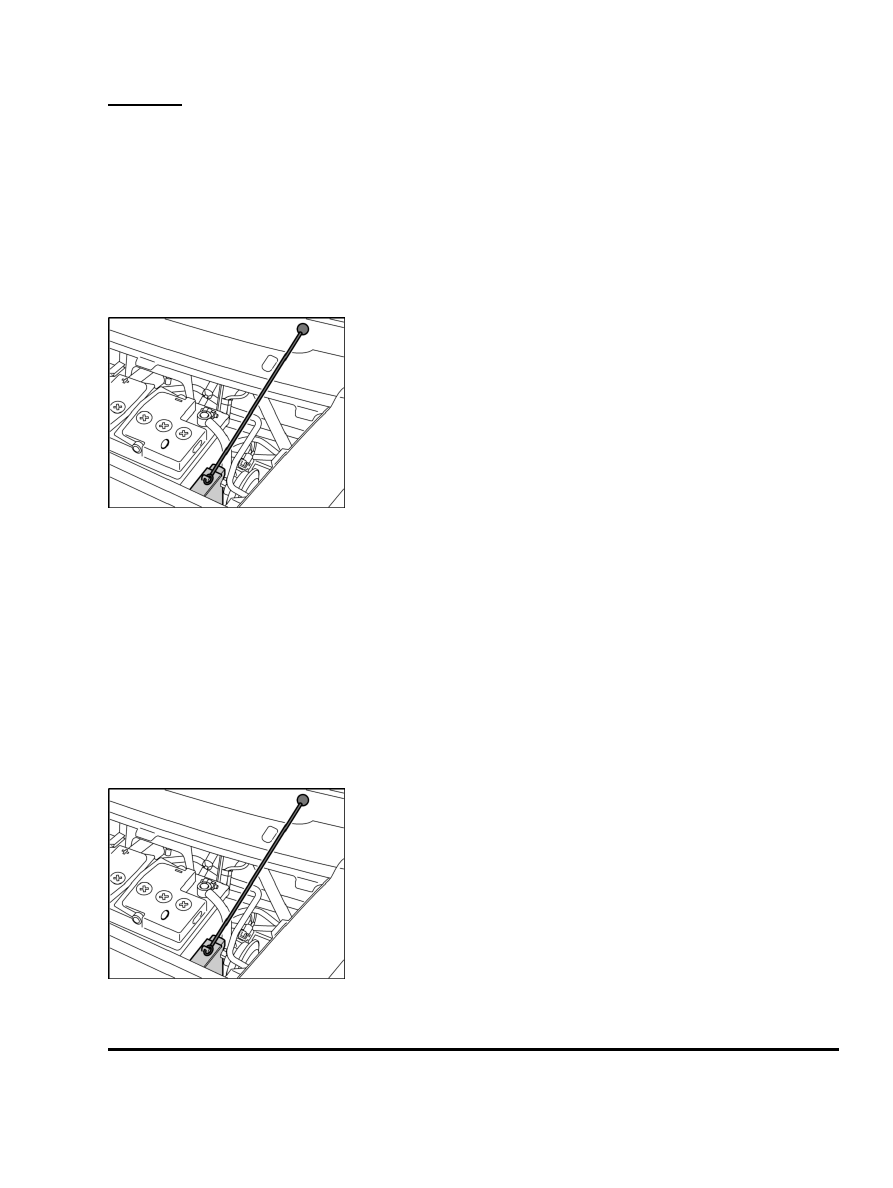

Removing the battery disconnect switch

4. Remove battery disconnect switch together with the lead for the negative terminal and unscrew the

fastening nut -4- . Remove lead for the negative terminal.

Routing and securing lead for negative terminal

5. Position lead for the negative terminal on the battery again and screw it firmly into place -3- . →

Tightening torque: 3.5 ftlb.

6. Position lead for the negative terminal on the bulkhead and secure with the fastening nut -2- . →

Tightening torque: 11 ftlb.

7. Place and fit the battery cover included with the vehicle.

8. Carry out → 271000  Work instructions after disconnecting the

battery.

Diagnostic system: reading out fault memory and activating systems

Removing main power supply switch

4194

Information

Vehicle electrical system - switching on

Battery disconnect switch with external switch lever

The battery disconnect switch, which is supplied via the positive terminal, is closed manually using the
external switch lever and locked electromagnetically. The luggage compartment lid must not be open when
doing this.

Vehicle electrical system - switching off

The vehicle electrical system switches off:
If the battery voltage falls below 12.6 V for approx. 10 min.
Immediately, if the voltage supply of the main power supply switch (battery disconnect switch) is
disconnected from the positive terminal.

Vehicle electrical system - switching off

Immediately, if the main power supply switch (battery disconnect switch) is mechanically released.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

 Information

4195
