Porshe 911 (997). Manual - part 90

Ignition switched on.

•

Oil return time:

 Before measuring the oil level, the engine oil must have returned to the oil pan. The duration

depends on the temperature and the time the engine has been stationary.
Starting measurement:

Oil level measurement

Note

The waiting time for the oil level measurement is indicated by a countdown time display and cycling
segments on the oil level indicator.

•

Short waiting times when measuring the engine oil level are obtained after the vehicle has been idle
for a long period or if the engine is at operating temperature.

•

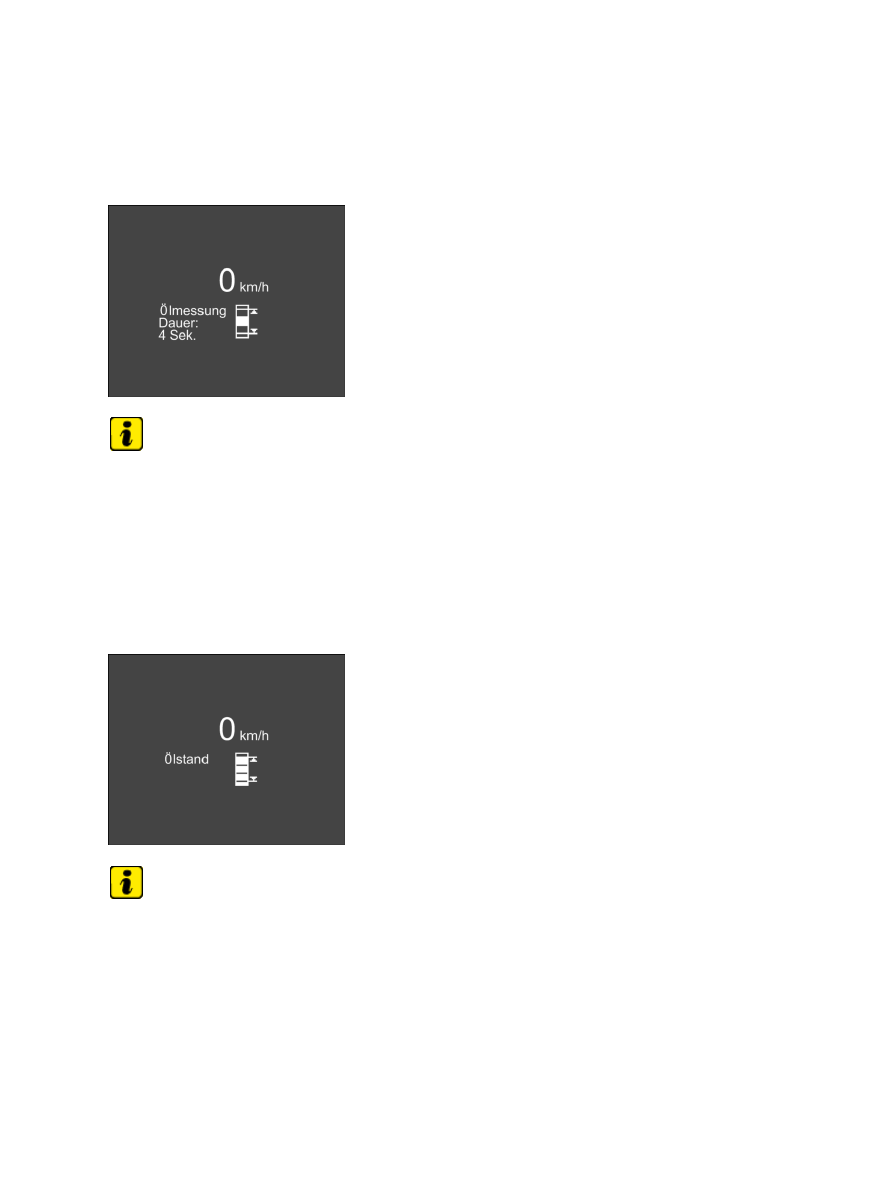

1. Switch on the ignition (do not start the engine). Measurement starts automatically. The display for

the oil level measurement appears on the on-board computer.

Oil level indicator (maximum mark)

Note

The oil level must be between the minimum and maximum marks.

•

Adjust the engine oil level if necessary (pour engine oil in slowly) and check the level again.

•

2. The oil level can be read off from the segment display after measurement is completed (at end of waiting

time). The permitted oil level lies between the minimum and maximum marks.

Diagnostic system: reading out fault memory and activating systems

Checking engine oil level

517

Minimum oil level

3. If the lowest segment of the oil level indicator is filled → Minimum oil level , the minimum oil level

has been reached and the oil must be topped up immediately →  A8 Engine oil and oil filter change -
topping up.

Oil level measurement in the "OIL" menu (requirements as above):

Operating lever for on-board computer (example 986)

4. Switch on selection field "D". Push operating lever forwards.

Menu item" OIL"

5. Use the operating lever to select the menu item OIL and press the operating lever.

Diagnostic system: reading out fault memory and activating systems

Checking engine oil level

518

Starting the oil level measurement

Note

The waiting time for the oil level measurement is indicated by a countdown time display and cycling
segments on the oil level indicator.

•

Short waiting times when measuring the engine oil level are obtained after the vehicle has been idle
for a long period or if the engine is at operating temperature.

•

6. Start measurement by pressing the operating lever.

Oil level measurement during refuelling:

7. The oil level is measured in the background when the vehicle is being refuelled. If the oil level is too low,

the message Check oil level appears on the on-board computer display.

Requirements

Vehicle is parked horizontally.

•

Engine is at operating temperature.

•

Ignition switched off.

•

There must be at least 5 minutesbetween switching off and starting the engine.

•

Refuelling completed within the last 15 minutes.

•

8. If these requirements are not satisfied, the measurement is interrupted.

9. If the oil level measurement cannot be carried out for two refuellings, the message "Check oil level"

appears in the display of the instrument cluster.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
