Thoroughly clean cylinder head and all parts before assembling. Carry out repairs approved by
PAG, if necessary.

Assembling cylinder head

Note

Reusable inner parts of the cylinder head must always be cleaned thoroughly and assigned to their original
installation location.

Valve stem seal

Note

Replace valve-stem seal.

1. Insert lower valve-spring plate, oil valve stem lightly and position assembly sleeve (shim set for

valve-stem seals). Either set new valve-stem seal on the assembly sleeve or insert in the assembly
driver 9606

Valve-stem seal on valve stem

Diagnostic system: reading out fault memory and activating systems

Assembling cylinder head

489

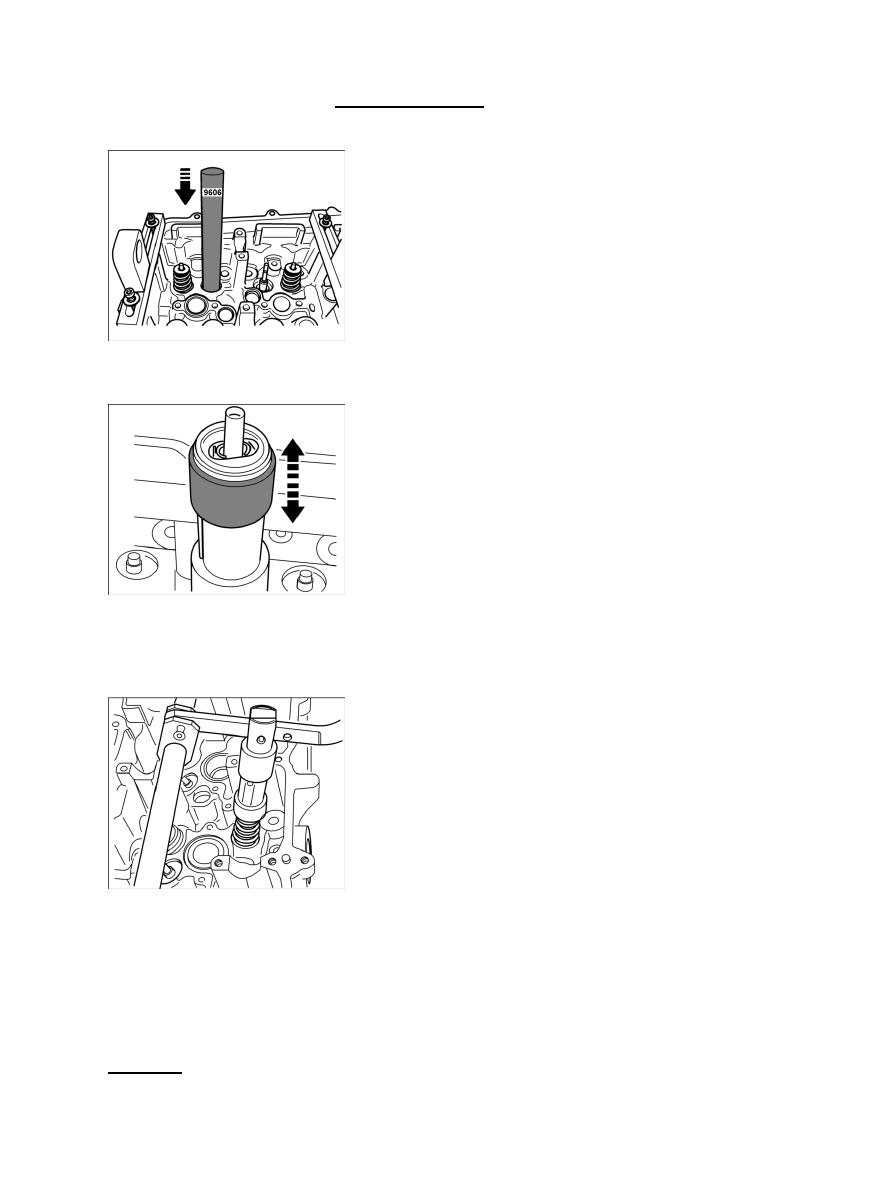

2. Press valve-stem seal with the assembly driver 9606 up to the stop on the valve stem. Take off tool

and assembly sleeve.

Pressing in valve-stem seal

3. Insert corresponding valve spring(s) and upper valve-spring plate.

Assembly head for valve keys

4. Fasten assembly head to lever arm. Push sliding sleeve downward to the stop and insert the valve

keys. In order to ensure correct assembly, the wedges should be centred. Then push the sliding
sleeve back again (valve keys fixed).

Mounting the valve keys

5. Position assembly head with the pressure piece over the valve stem and align the assembly head so that it

is aligned with the valve. Slowly press the assembly head downwards and guide it with your hand until a
clicking sound can be heard. The valve keys are then automatically pressed into the correct installation
position.

6. Swivel out the lever with the assembly head and check the seat of the valve keys. Repeat the process if

necessary.

Diagnostic system: reading out fault memory and activating systems

Assembling cylinder head

490

Assembling cylinder head, touching up

1. Install cylinder head → 157019 Removing and installing side cylinder head - chapter on "Installing".

2. Mount transmission → 343527 Removing and mounting transmission - chapter on "Mounting" or

→ 373527 Removing and mounting automatic transmission - chapter on "Mounting" [997110 997111
997120 997121 997310 997311 997320 997321]→ 373527 AG Removing and mounting automatic
transmission - chapter on "Mounting" [997410 997411 997430 997431 997610 997611 997620 997621].

3. Install engine → 100119 Removing and installing engine - chapter on "Installing".

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
