Diagnostic system: reading out fault memory and activating systems

Subsequent work for installing camshafts

409

- Preliminary work for bearing cover for intermediate shaft
- Removing bearing cover for intermediate shaft
- Installing bearing cover for intermediate shaft
- Subsequent work for bearing cover for intermediate shaft

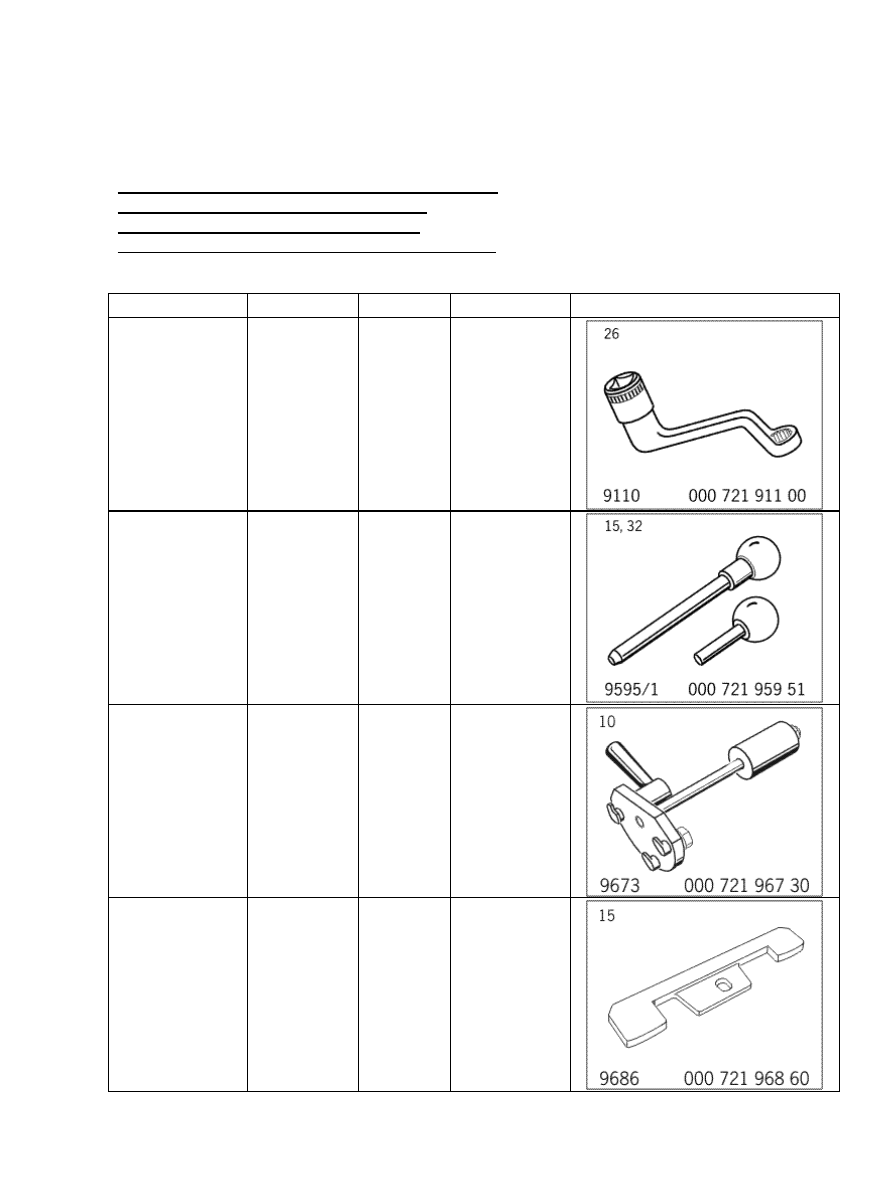

Tools

Designation

Type

Number

Explanation

socket wrench

special tool

9110

fixing pins

special tool

9595/1

puller

special tool

9673

adjusting gauge

special tool

9686

410

Preliminary work for bearing cover for intermediate shaft

Preliminary work for bearing cover for intermediate shaft

Note

Note the work instructions for disconnecting and reconnecting the battery.

•

1. Disconnect the battery → 271000  Work instructions after disconnecting the battery.

2. Drain engine oil → 170155 Engine oil and oil filter change - chapter on "draining".

3. Remove air cleaner housing → 242519 Removing and installing air cleaner housing - chapter on

"removing".

Tiptronic transmission:

4. Remove engine → 101019 21 Removing and installing engine - chapter on "removing".

5. Remove Tiptronic transmission → 373527 Removing and refitting automatic transmission - chapter on

"removing" [997110 997111 997120 997121 997310 997311 997320 997321]→ 373527 A3 Removing and
refitting automatic transmission - chapter on "removing" [997410 997411 997430 997431 997610
997611 997620 997621]
.

6. Remove drive plate for converter → 136319 Removing and installing drive plate for converter - chapter on

"removing".

Manual transmission:

7. Remove manual transmission → 343519 Removing and installing transmission - chapter on

"removing" [997410 997411 997430 997431 997610 997611 997620 997621]→ 343519 Removing and
installing transmission - chapter on "removing" [997110 997111 997120 997121 997310 997311 997320
997321].

8. Remove clutch → 305019 Removing and installing clutch - chapter on

"removing".

9. Remove double-mass flywheel → 136019 Removing and installing double-mass flywheel - chapter on

"removing" [997110 997111 997310 997311 997410 997411 997610 997611]→ 136019 Removing and
installing double-mass flywheel - chapter on "removing" [997120 997121 997320 997321 997430 997431
997620 997621].

Removing bearing cover for intermediate shaft

Diagnostic system: reading out fault memory and activating systems

Tools

411

Removing bearing cover for intermediate shaft

ATTENTION

Timing chain may jump over.

Risk of engine damage

•

→ Following removal of the chain tensioner, the crankshaft must not be turned under any circumstances.

Note

It is only possible to remove the bearing cover with the engine installed in vehicles with manual
transmission.

•

In Tiptronic vehicles, the complete engine/transmission unit must be removed.

•

Bearing cover with sealing ring

Bearing cover

1. Lever out two green closure caps on pulley side of cylinder bank 1 -

3.

Fixing belt pulley (damper)

2. Turn the engine at the hexagon-head bolt (a/f 24) of the crankshaft belt pulley (or vibration damper)

clockwise to overlapping TDC of cylinder bank 1-3 and fix it with special tool fixing pins 9595/1.

Note

Diagnostic system: reading out fault memory and activating systems

Removing bearing cover for intermediate shaft

412
