- Camshaft designation M96/05
- Allocation of inlet camshaft adjustment device
- Allocation of chain tensioners
- Preliminary work for removing camshafts
- Removing camshaft - engine removed
- Installing camshaft - engine removed
- Subsequent work for installing camshafts

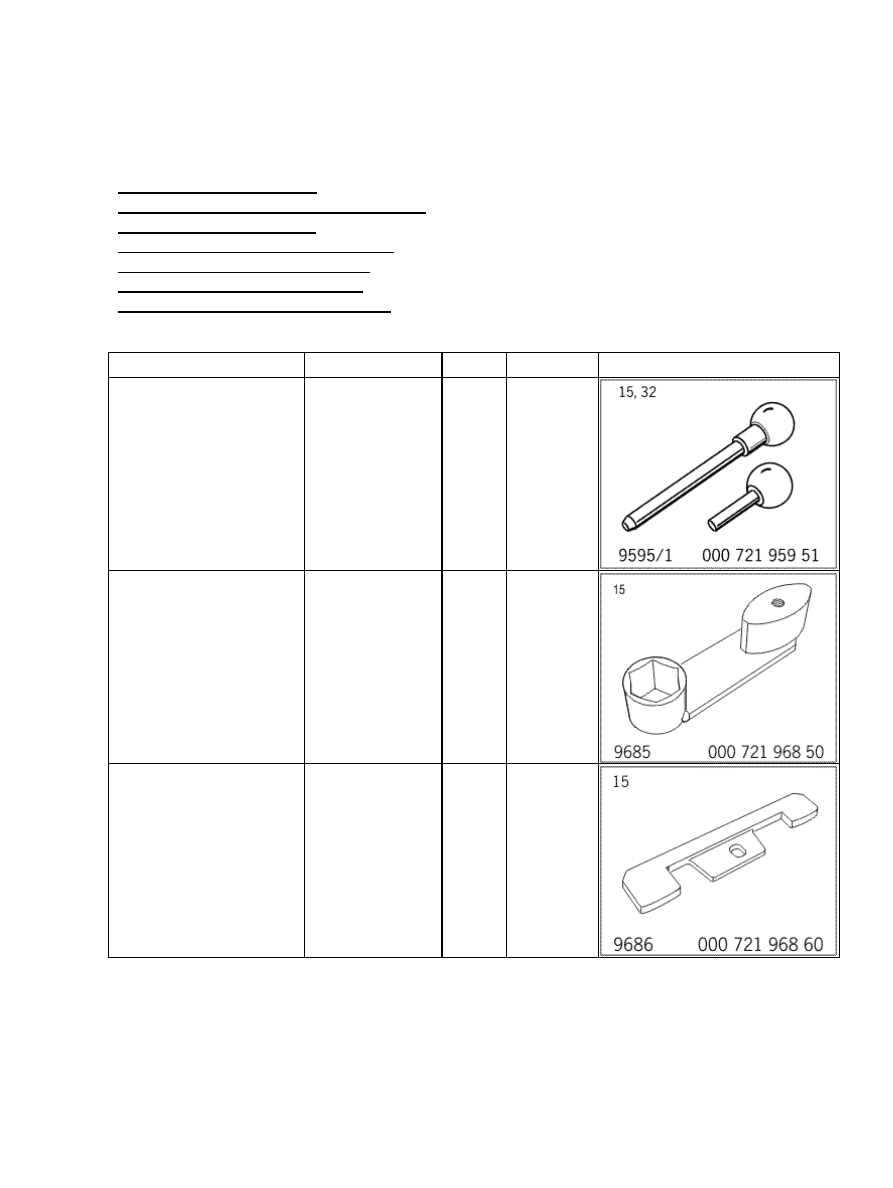

Tools

Designation

Type

Number Explanation

locating pin

special tool

9595/1

retaining tool

special tool

9685

adjusting gauge

special tool

9686

cover for dust protection
when fitting the engine

commercially
available tool

NR.165

Camshaft designation M96/05

Camshaft designation M96/05

Note

Between the start of series production in April 2004 and August 2004, the camshaft manufacturer changed the
lettering of the camshafts. In order to avoid a mixed installation, particular attention must be paid to the
designation of engines installed in standard vehicles during this period.

Position of camshaft designation

Position of lettering: -arrows-
Camshafts for cylinders 1 - 3

Inlet camshaft 261.08 3,6 IN 1-3

•

Exhaust camshaft: 262.05 3,6 EX 1-3

•

Inlet camshaft (new): 996.105.047.02/03 3,6 IN 1-3

•

Exhaust camshaft (new): 996.105.059.01 3,6 EX 1-3

•

Camshafts for cylinders 4 -6:

Diagnostic system: reading out fault memory and activating systems

Tools

346

Inlet camshaft: 263.08 3,6 IN 4-6

•

Exhaust camshaft: 264.05 3,6 EX 4-6 (with aluminium plugs)

•

Inlet camshaft (new): 996.105.048.02/03 3,6 IN 4-6

•

Exhaust camshaft (new): 997.105.060.01 3,6 EX 4-6 (with aluminium plugs)

•

Aluminium plugs in exhaust camshaft 4 - 6

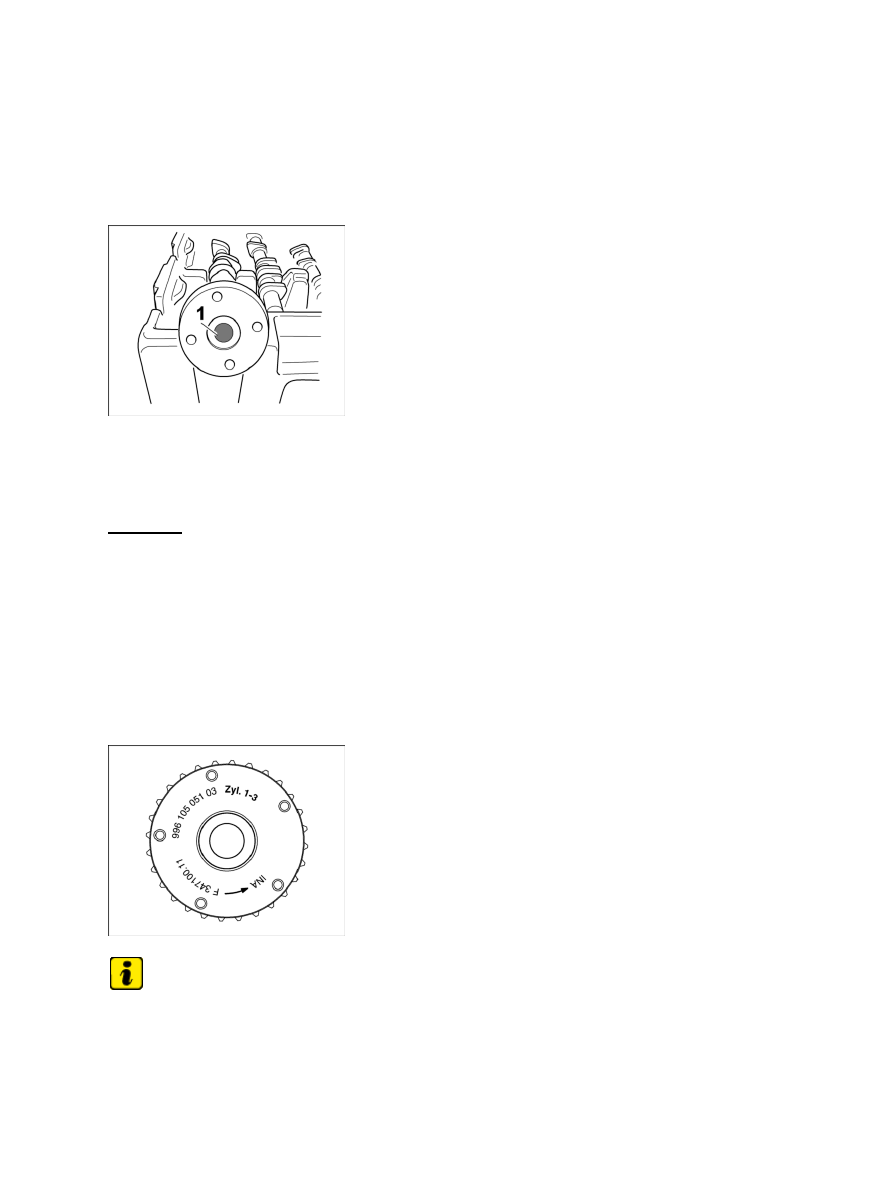

Allocation of inlet camshaft adjustment device

Allocation of inlet camshaft adjustment device

Camshaft adjustment device on inlet camshaft, cylinder bank 1 - 3

Designation of adjuster 1 - 3

Note

Side 1 - 3: the arrow should be attached anti-clockwise

•

–  Designation, side 1 - 3:

Diagnostic system: reading out fault memory and activating systems

Camshaft designation M96/05

347

Part number, cylinder bank, manufacturer information, direction of rotation of engine (arrow),
production date.

•

Camshaft adjustment device on inlet camshaft, cylinder bank 4 - 6

Designation of adjuster 4 -6

Note

Side 4 - 6: the arrow should be attached clockwise

•

–  Designation, side 4 - 6:

Part number, cylinder bank, manufacturer information, direction of rotation of engine (arrow),
production date.

•

Allocation of chain tensioners

Allocation of chain tensioners

Primary chain tensioner

Diagnostic system: reading out fault memory and activating systems

Allocation of inlet camshaft adjustment device
