ELECTRICAL CONNECTOR

6.4.1. Wire pin layout



The wire pin layout does not change for Left Hand, Right Hand, Manual nor Remote Mirrors. Pin layout is the
same for all mirrors.

See the table below for the wire pin layout.



Left Hand

Right Hand

#  Color (Function)  Remote  Manual  Remote  Manual

1  Black (Heater-)

2  White (Act Grd)

3  Yellow(Act L/R)

4  Grey(Act U/D)

5  Green (OAT-)

6  Blue (OAT+)

7  - [Sealing Plug]

8  Black (Heater+)

-



Add plug

Note:



The 2 black heater wires have no polarity and can be inserted vice versa at either #1 or #8.



Plug all unused cavities with a sealing plug.



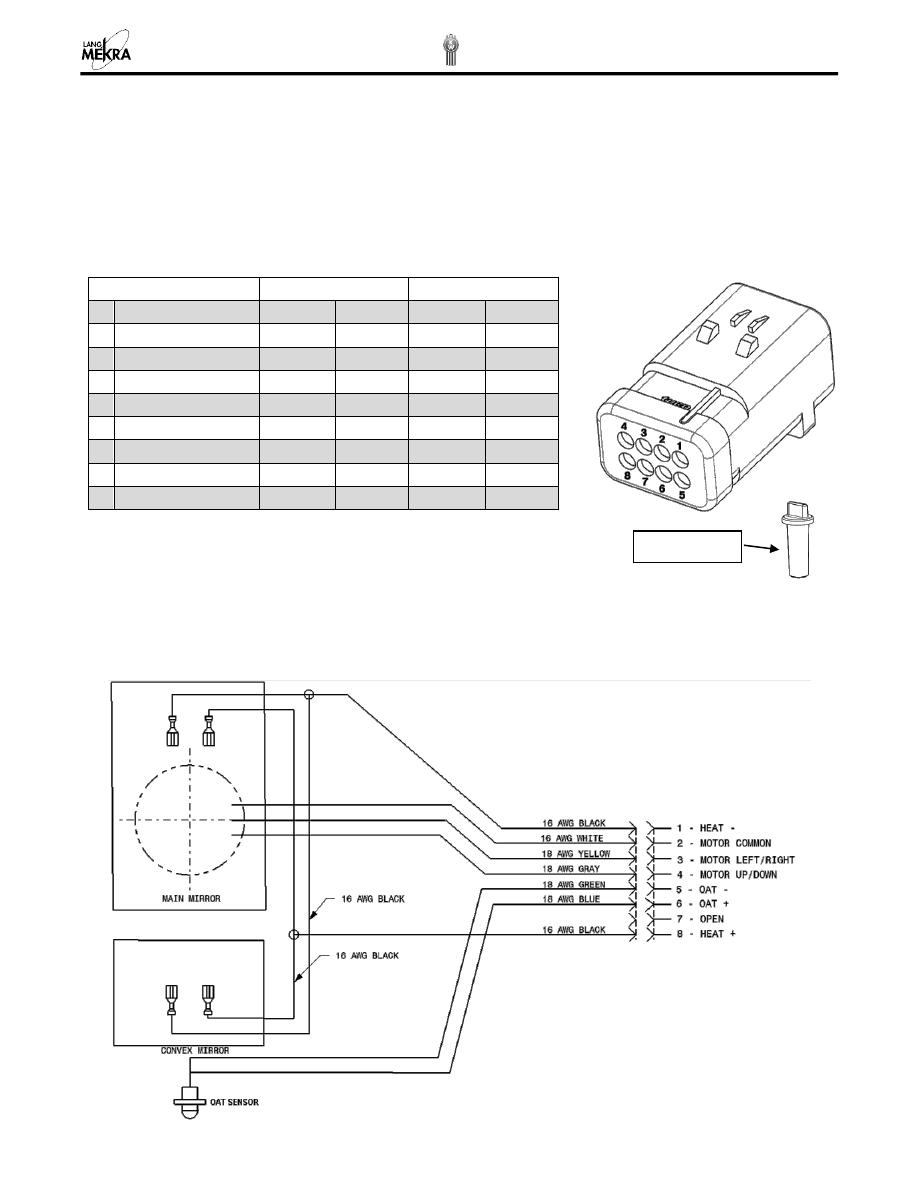

The electrical wire diagram of the left-hand mirror system is shown below.



Except for the OAT sensor (green

and blue wires) the diagram is the same for the right hand mirror.







Sealing Plug





Note:

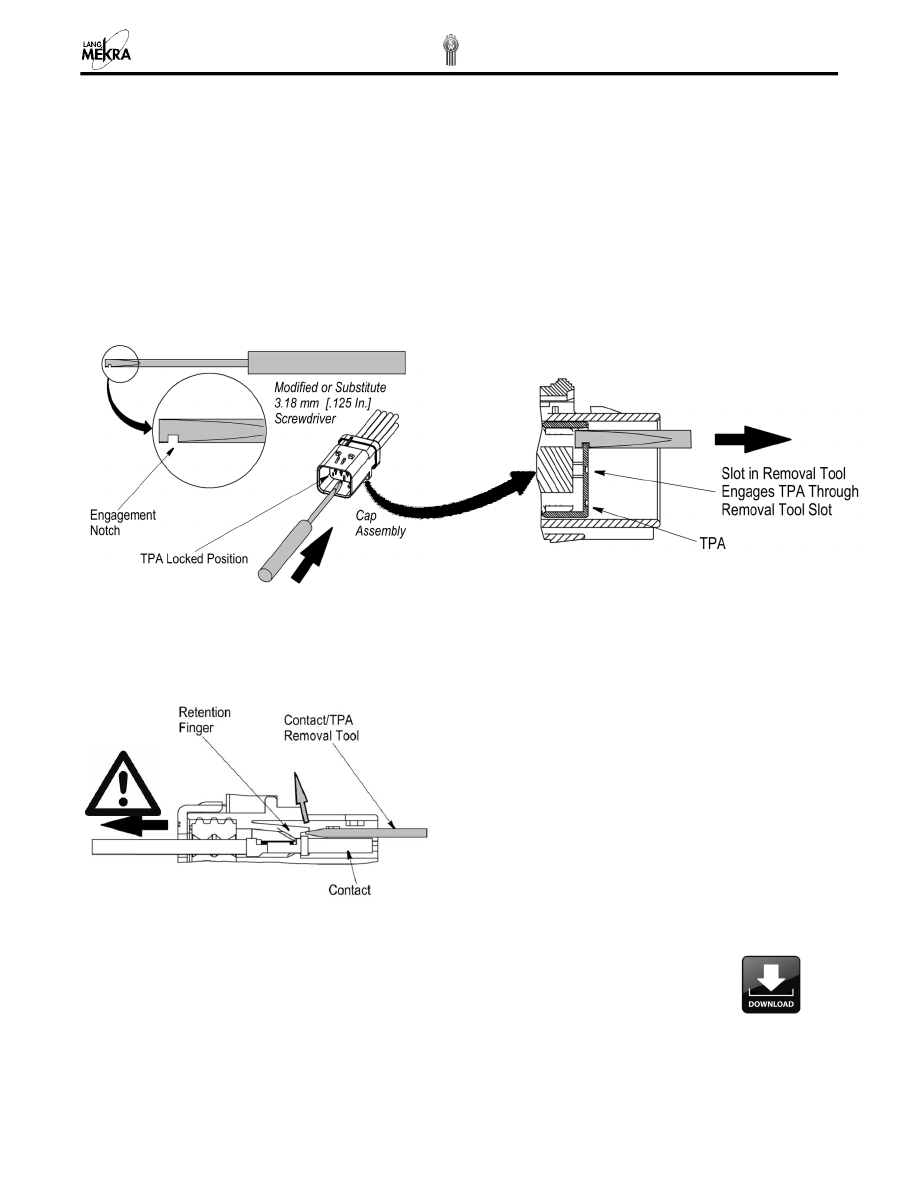

 A special tool is required to remove wires from the connector: Ref. Contact/TPA Removal Tool 776441-1.

It can be substituted with a modified screwdriver or other.

1.



Insert the removal tool into the extraction slot in the cap assembly - Terminal Position Assurance (

TPA

).

2.



Hook the removal tool firmly against the edge of the slot and pull on the TPA until it is completely removed
from the housing assembly. Retain the red cap for use with the connector assembly after the contacts are
replaced.







3.



Insert the tip of the contact/TPA removal tool into the contact cavity and deflect the contact retention finger.
Gently  pull  the  wire  until  the  contact  is  free  from  the  housing.  Repeat  this  procedure  for  the  remaining
contacts to be removed.



Rotating the contacts to remove them from the housing
without using the extraction tool may damage the housing
resulting in reduced contact retention upon subsequent
use of the housing.









More information on the Connector instruction datasheet: to download

Ctrl + Click

 on the button

With courtesy of TE







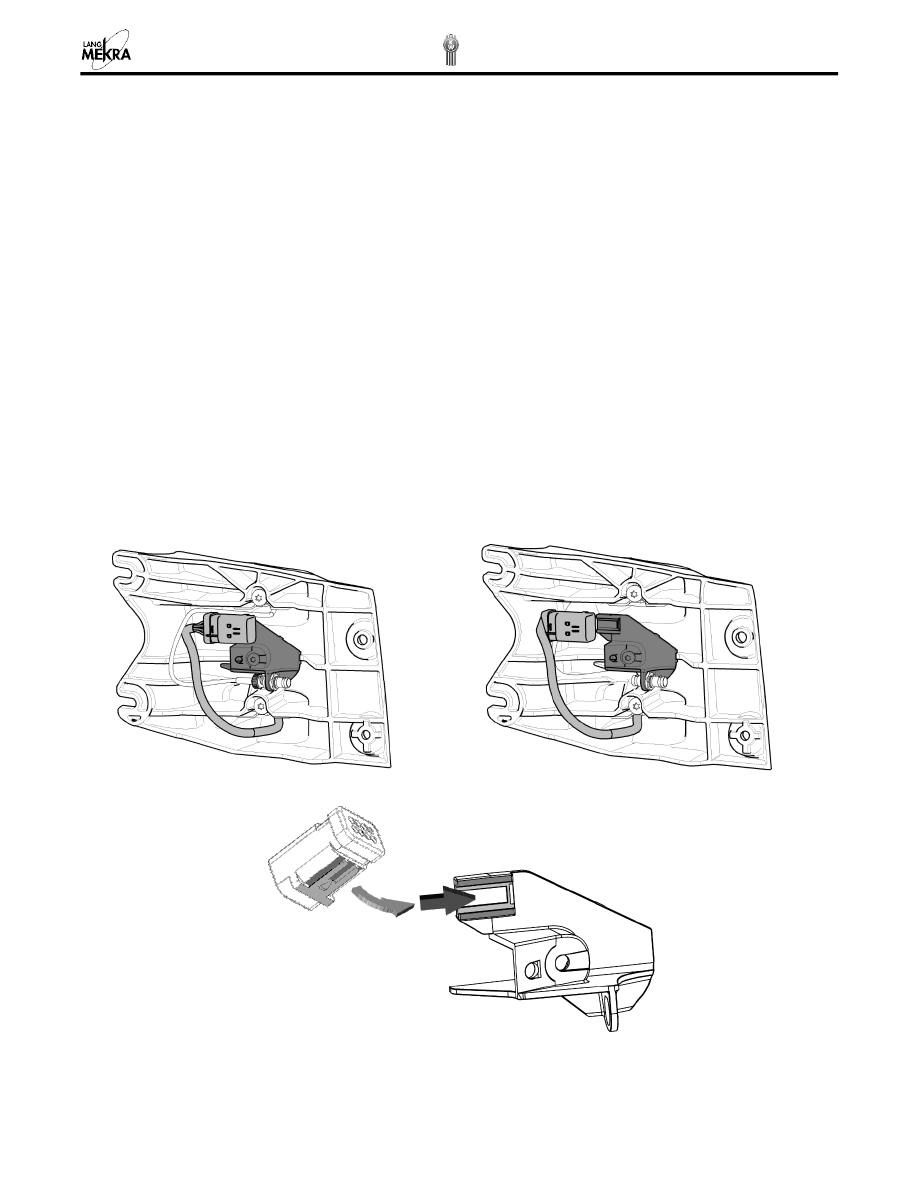

Removal:

1.



To remove the connector, pull down on the connector to slide it out of the slot. See below.

2.



The connector sits quite tight and one needs to pull and wiggle the connector in a downward direction until
it slides out of the slot.

Warning

: Using a lever between the holder and the top of the connector to slide it down can damage the wires,

connector and connector housing.



Installation:

1.



Attach the electrical connector onto the connector housing.

2.



Slide the connector into the slot provided on the connector housing while pushing the extra cable into the
arm.

3.



Slide the connector until it is locked into place.



























7.1.

ANALYSIS





















































Mirror will not Heat

Is Voltage present at Heater

connectors when switch is

operated? See 7.2

Is Voltage present at truck

connector when switch is

operated? See 7.4



Wire Harness continuity ok?

See 6.4.1

Is the resistance of the heater

foil too specification? See 7.3

Replace control cable

Kit # 2, 3, 4 or 5 - See 9 and 6.1

Check connection at terminals.

Make sure connection is secure.



Yes

Yes

No

No

No

Cab internal problem

See truck fault finding

Work instructions

Replace Carrier Glass Assembly

Kit # 8,9,10 or 11

See 2 and 9

Yes

No

Yes

Check connection at terminals.

Make sure connection is secure.

Remove the mirror from the truck.

See 1





Remove glass

. See 2
