Engine International VT365. Manual - part 22





MANIFOLDS AND EXHAUST GAS RECIRCULATION (EGR)

85

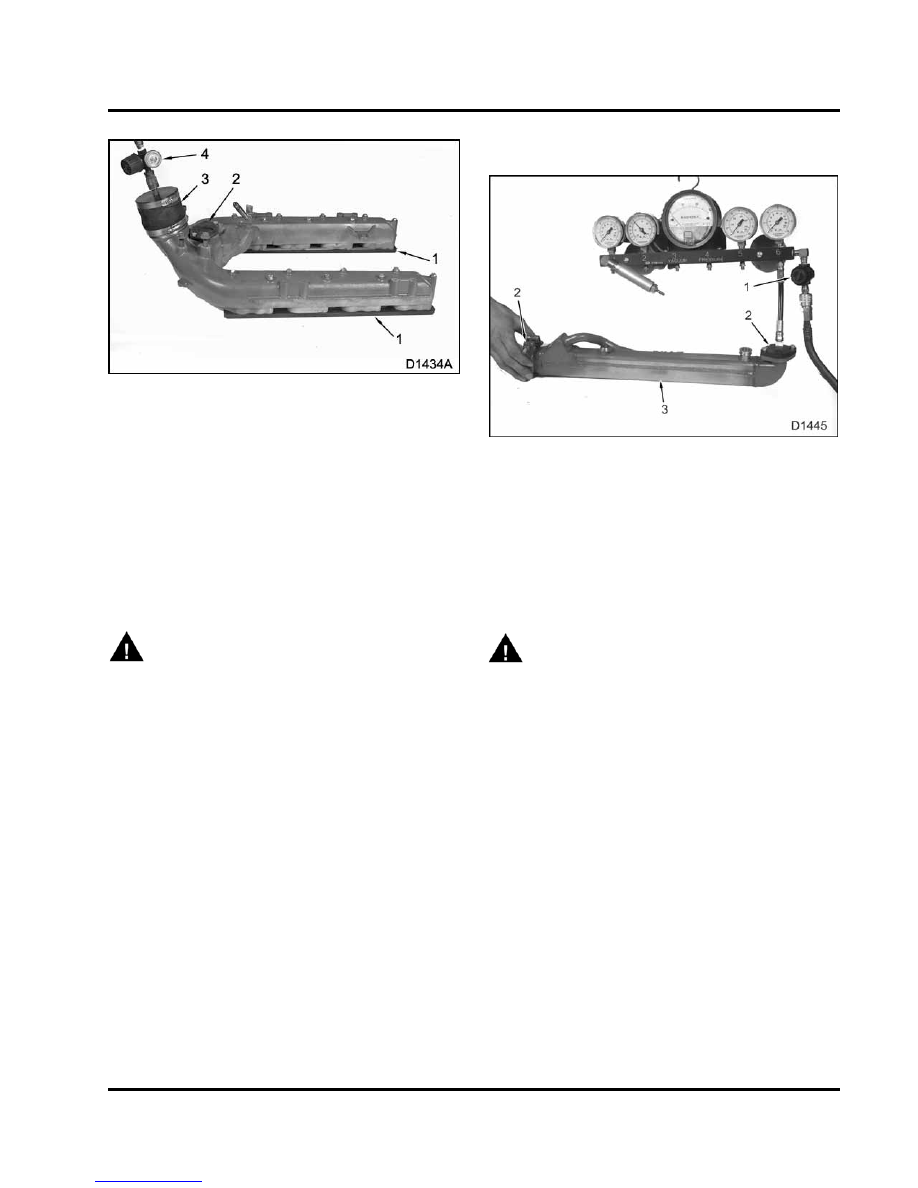

Figure 105 Set up for intake manifold pressure
test

1.

Test plate

2.

Intake Manifold Pressure Test Plug

3.

Intake Manifold Pressure Test Cap

4.

Air supply pressure regulator

2.

Install Intake Manifold Pressure Test Plug (Table
9) in EGR orifice.

3.

Install Intake Manifold Pressure Test Cap(Table 9)
on air intake.

WARNING: To prevent personal injury or

death, wear safety glasses with side shields to
protect eyes. Limit compressed air pressure to
207 kPa (30 psi).

4.

Submerge intake manifold assembly in water.

5.

Use a regulated filtered air supply and pressurize
to 172 to 207 kPa (25 to 30 psi). Inspect for leaks
in the intake plenum, EGR, and coolant passages.
Replace intake manifold, if necessary.

6.

Inspect intake manifold gasket seal beads for
defects. Replace gasket, if necessary.

Exhaust Gas Recirculation (EGR) Cooler

Figure 106 EGR cooler with pressure test plates
installed

1.

Air pressure regulator assembly

2.

EGR cooler test plates

3.

Cooler assembly

1.

Install EGR cooler test plates (Table 9) to each
end of the EGR cooler assembly.

WARNING: To prevent personal injury or

death, wear safety glasses with side shields.
Limit compressed air pressure to 207 kPa (30 psi).

2.

Attach an air pressure regulator to the EGR
cooler. Connect to shop air supply and adjust air
pressure to approximately 172 to 207 kPa (25 to
30 psi).

3.

Completely submerge EGR cooler in sink or large
container of water. Inspect for air bubbles coming
from coolant passages.

4.

Reinstall EGR cooler assembly, if leaks are not
detected. If leaks are detected, install new cooler
assembly.

86

MANIFOLDS AND EXHAUST GAS RECIRCULATION (EGR)

Installation

Exhaust Gas Recirculation (EGR) Cooler

1.

Place new O-ring on the EGR cooler to manifold
seal tube and lubricate O-ring with clean engine
oil before assembly.

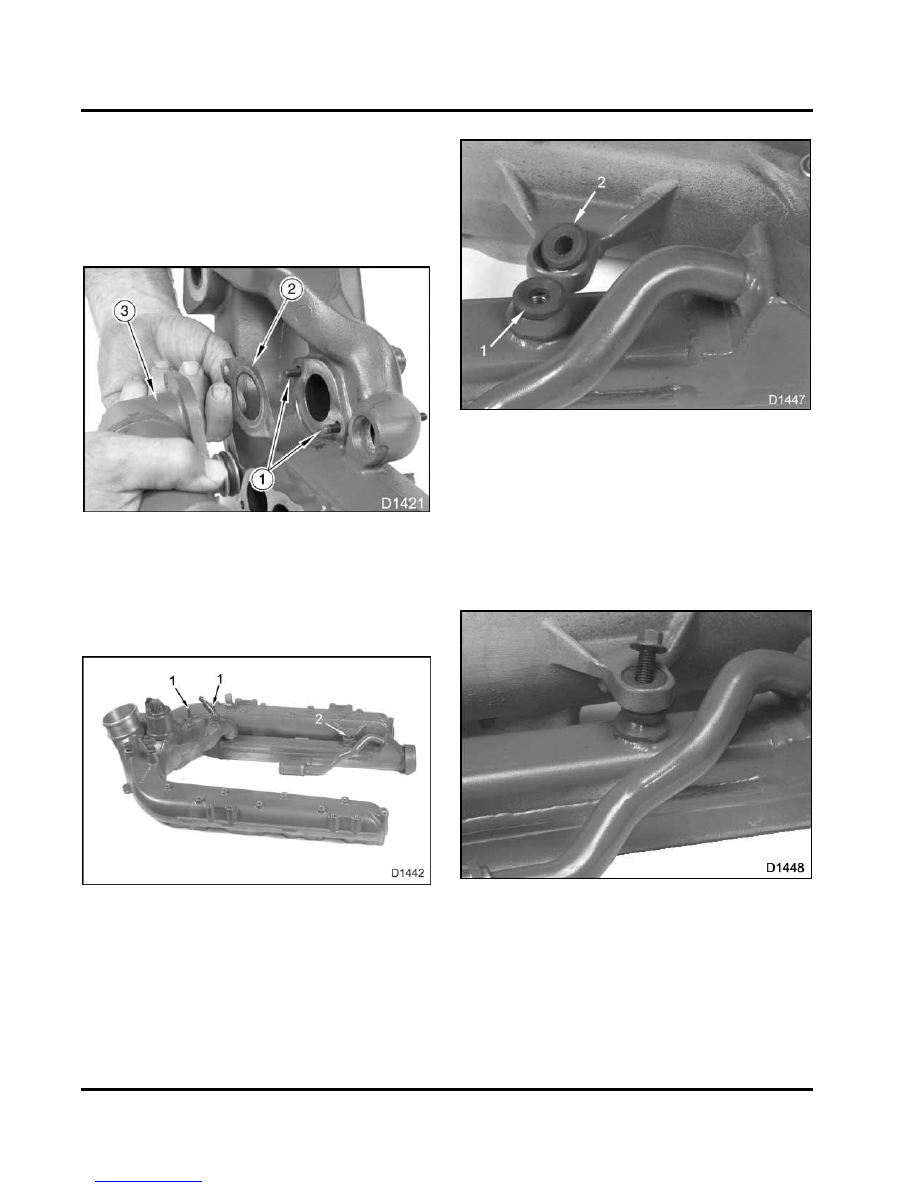

Figure 107 EGR cooler connection to intake
manifold

1.

Stud bolt (M6 x 20) (2)

2.

EGR cooler to manifold gasket

3.

EGR cooler

Figure 108 EGR cooler retaining bolts

1.

Bolt (M6 x 20) stud (2)

2.

Bolt (M6 x 16)

2.

Install a new EGR cooler gasket and connect the
EGR cooler to the intake manifold. Install and
hand tighten two M6 x 20 stud bolts.

Figure 109 Bosses between EGR cooler and
intake manifold

1.

Boss grommet

2.

Intake manifold bolt tab grommet

3.

Set a grommet on the EGR cooler boss, align the
intake manifold bolt tab over the grommet, and set
a grommet in the bolt tab cavity.

Figure 110

EGR rear mount bolt

4.

Insert and hand tighten one M8 x 15 hex washer
bolt.

MANIFOLDS AND EXHAUST GAS RECIRCULATION (EGR)

87

Figure 111 EGR cooler retaining bolts

5.

Tighten all three fasteners to the standard torque
(Standard Torques, page 375).

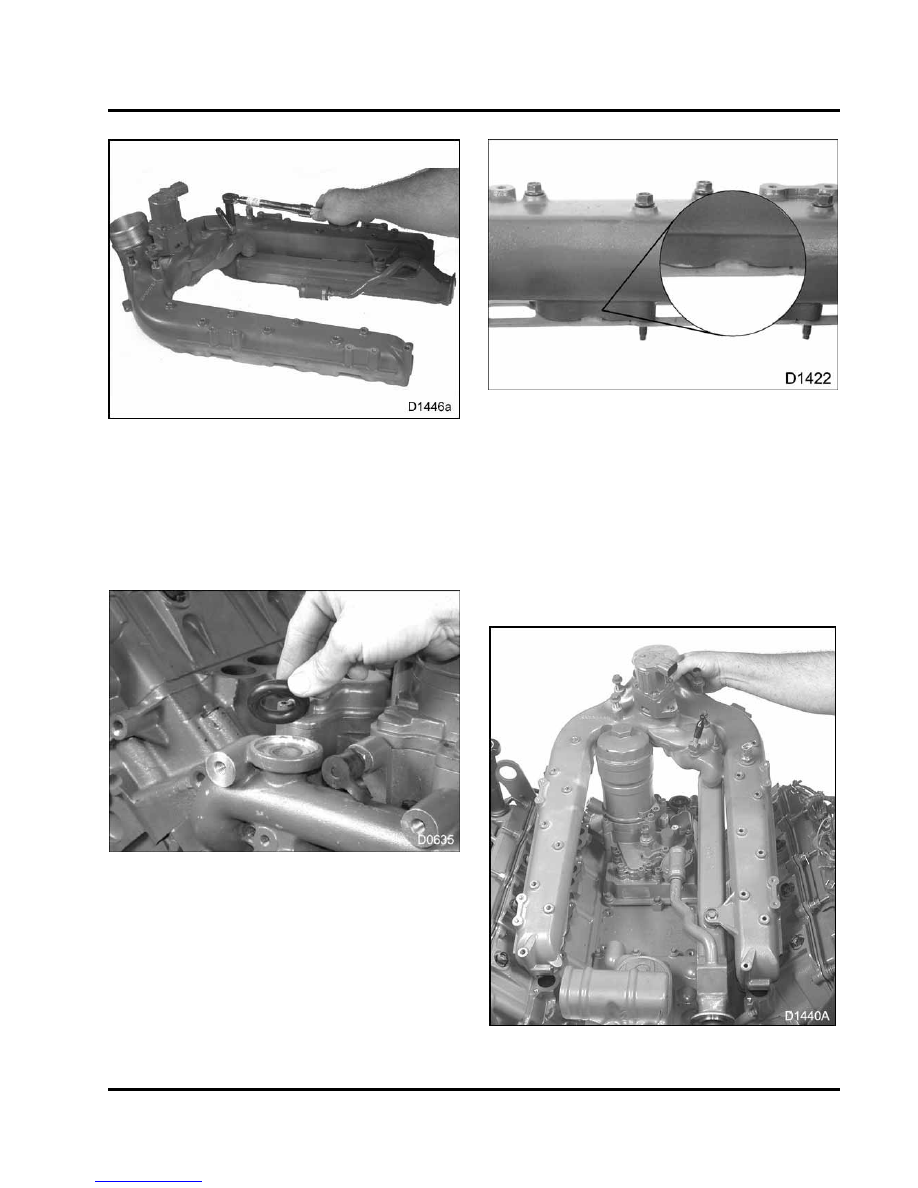

Intake Manifold and EGR Cooler

Figure 112

Front module seal

1.

Install a new front module seal between the intake
manifold and front cover module.

Figure 113

Intake manifold gasket with

centering tab

2.

Position a new intake manifold gasket on each
side of intake manifold and run two bolts through
each side to hold gaskets. Make sure centering
tabs are facing up in the manifold, while positioned
inboard toward the engine valley.

3.

Remove protective magnetic covers (Table 9)
from cylinder head intake ports.

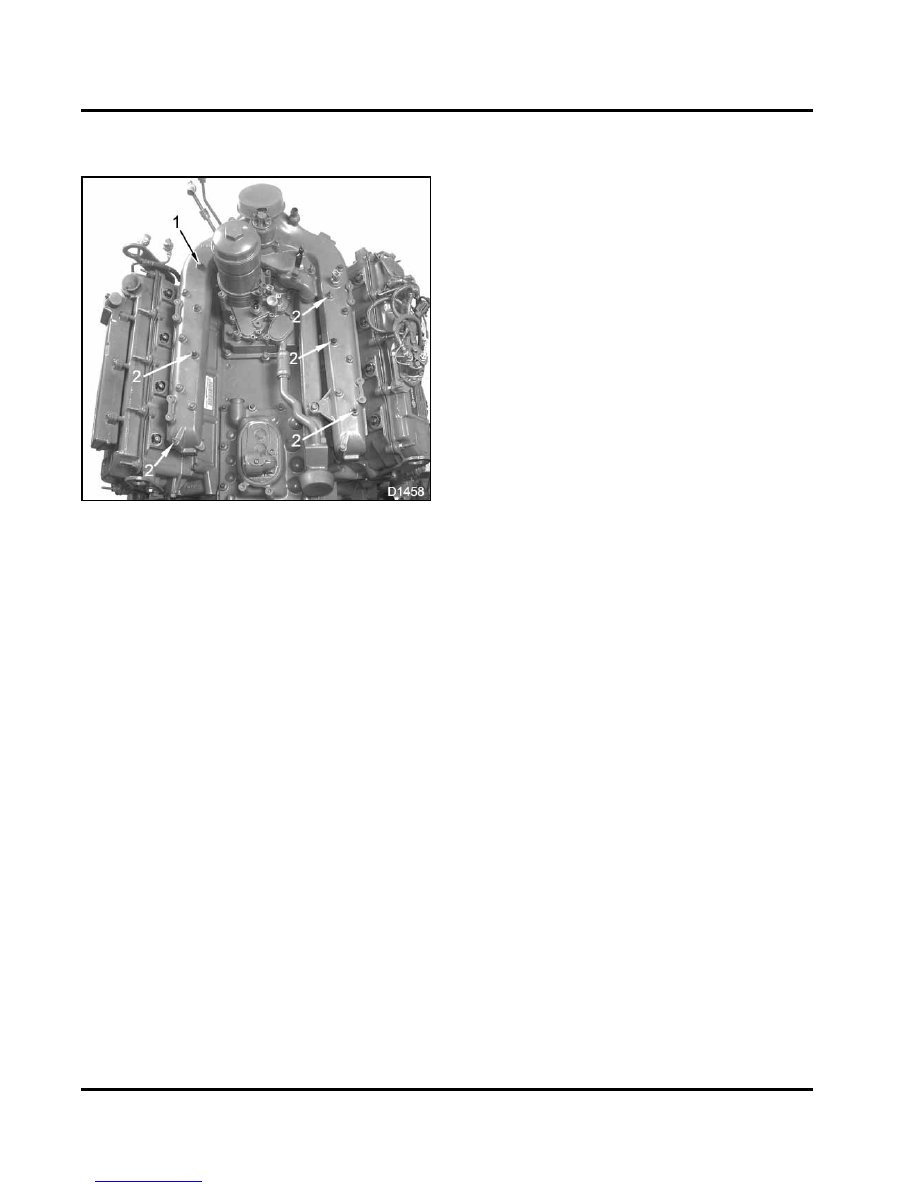

Figure 114 Intake manifold and EGR cooler
assembly

88

MANIFOLDS AND EXHAUST GAS RECIRCULATION (EGR)

4.

Position intake manifold on cylinder heads.

Figure 115 Dog point bolts and stud bolts

1.

Bolt (M6 x 95 dog point) (11)

2.

Bolt (M6 x 95) stud (5)

5.

Loosely install 11 dog point bolts and 5 stud bolts.
